26/04/2024

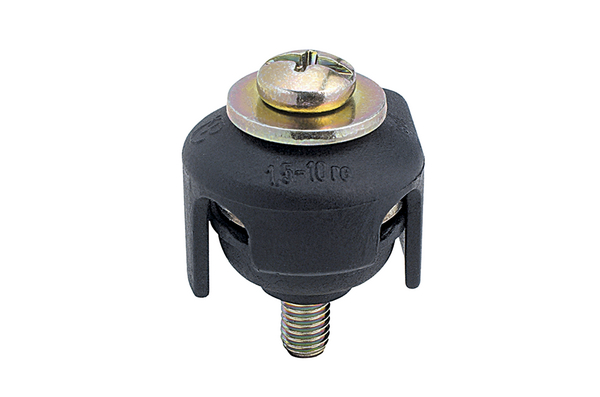

Tap connector, 1.5-10.0mm², black, 1pc.
Art.-No. 435-01556 | Tap connector 1510-ST/PP-BK |  Details

Tap connector, insulated, for copper conductors.

    This product is not available anymore.
    • Connection of insulated Cu- conductors
    • Special contact dishes that cut through the insulation of the main and branch conductors are imbedded in polymeric insulation material
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These insulated junction connectors are suitable for insulated Cu- conductors.
    Colour Black (BK)
    Material Steel (ST), Polypropylene (PP)
    Mounting Screw Type M5 Screw
    Pack Cont. 1pc.
    Package Content packed in pcs.
    PART DESCRIPTION Tap connector 1510-ST/PP-BK
    Product Family Junction connectors, insulated, suitable for insulated Cu conductors
    Product Group Connectors
    Short Description Tap connector 1510 ST/PP BK
    Type of connection Thread
    Conductor Size Range mm² 1.5-10.0mm²
    Height (H) 20mm
    Weight/Unit 0.016kg
    Width (W) 23mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Specifications
    Country of Origin DE
    Customs Number 85369010
    GTIN-13 / EAN 4250596412671
    Packaging 1 - Height (m) 0.028m
    Packaging 1 - Length (m) 0.022m
    Packaging 1 - Qty 1
    Packaging 1 - Type Pack
    Packaging 1 - Volume (m³) 0.00001m³
    Packaging 1 - Weight (kg) 0.016kg
    Packaging 1 - Width (m) 0.022m
    ETIM 7.0 Key EC001062
    ETIM 8.0 Key EC001062
    ETIM 9.0 Key EC001062
    cable jointing cable jointing

    cable jointing

    Innovative cable jointing for reliable cable connections.
