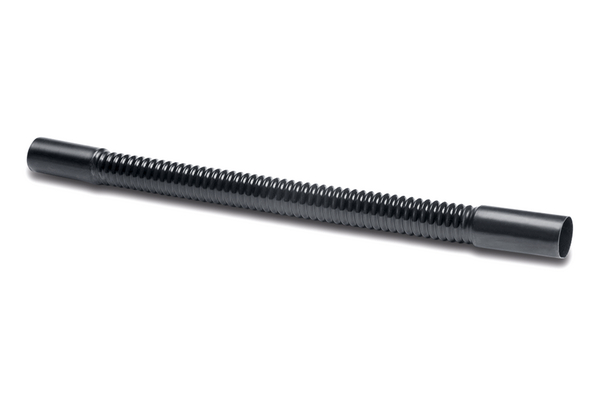

Heat Shrinkable Tubing 3:1 for feed-throughs , 800 mm, D = 86 mm
Art.-No. 435-10260
| WSHE 86/45-PO-X-BK
|
Copied
This product is not available anymore.
- High mechanical strength, compact dimensions, adhesive lined
- Resistant to chemicals, UV, aging and weather resistant
Request quote
More products in this product group:
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | WSHE 86/45-PO-X-BK |
| Package Content | 1pc. |
| Package Content packed in | pcs. |
| Printable | Yes |
| Product Family | WSHE |
| Product Group | Heat shrinkable wall for feed-throughs |
| Short Description | Heat Shrinkable Tubing 3:1 for feed-throughs , 800 mm, D = 86 mm |
| Shrink Ratio | 3:1 |
| Type | WSHE 86/45 |
| Typical Application | The RELICON WSHE heat shrinkable wall feed-through is designed to protect all types of cables and conduits through building walls. It is also the perfect solution to seal against gas and moisture of conduits, wires and cables. |
| Variant | Thick-Wall |
| Weight/Unit | 1.539kg |
| With inner glue (Yes/No) | Yes |
|
|
|
| Country of Origin | PL |
| Customs Number | 39173900 |
| GTIN-13 / EAN | 4250596413487 |
| Packaging 1 - Height (m) | 0.115m |
| Packaging 1 - Length (m) | 0.45m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.044505m³ |
| Packaging 1 - Weight (kg) | 2.349kg |
| Packaging 1 - Width (m) | 0.86m |
| Packaging 3 - Height (m) | 1.02m |
| Packaging 3 - Length (m) | 0.105m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0112m³ |
| Packaging 3 - Weight (kg) | 2.849kg |
| Packaging 3 - Width (m) | 0.105m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 49 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 192.481kg |
| Packaging 4 - Width (m) | 0.8m |
