Cast resin joint, armoured, Branch Y, 3 x 1.5mm² to 5 x 10mm², L=205mm, 490 ml/671 g, Polyurethane resin (PUR) green
Art.-No. 435-12213 | Y-1 A-PUR-GN Details

  • Two-part, impact-proof, transparent moulding shells
  • Compact, optimized dimensions
  • Standard cable diameters indicated on the shells
  • SF-system
  • Immediately ready for use
  • Longitudinally and transversely watertight
  • Joint can be submerged directly after casting
Show more

Request your individual offer now

Application RELICON cast resin joints for armoured cables are suitable for polymeric cables with earth bonding/continuity of SWA and STA. The transparent two-chamber resin bag makes the mixing process visible and therefore more reliable. Included all necessary earth continuity parts that suits the complete range of the joint and consists of constant force springs with straight ends for easy installation without any classical injuries. The range of the constant force springs is also printed on the constant force spring to make installation comfortable and to avoid mistakes. Relicon branch joints are also suitable for cut and uncut mains and the PA-Line even for double service cables. Application: Public and private networks, In- and outdoor, above ground, underground or submerged, cable ducts.
Application Tool PTS4, ASS103, RCS0425
Colour Green (GN)
Content Cast resin PUR 33 with ‘’colour change’’ in a transparent two-chamber pouch
PP Moulding shells, transparent

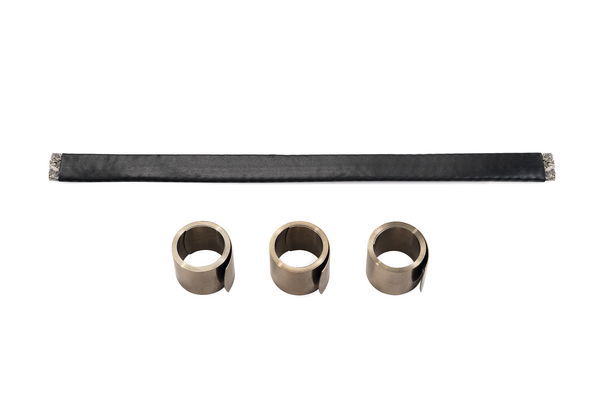

Earthing braid and constant force springs for armour continuity
SF-filling system and adapter
Emery cloth for roughening the cable sheath
HelaTape-Flex 15 insulating tape
HelaTape-Power 715 tape
Protective gloves
Detailed installation instruction and material list
Material Polyurethane resin (PUR)
No. of Wires 5
Pack Cont. 1Set
Package Content packed in set
PART DESCRIPTION Y-1 A-PUR-GN
Product Family RELICON Y-A Line SF Armoured with PUR 33
Product Group Branch cable joints
Short Description Branch joint Y-1-A / SF5x6 to 5x10
Variant Cast resin
Angle 30°
Banch Cable min 3 x 1.5mm²
Branch Cable max 5 x 6mm²
Cable Diameter Branch Cable 6-26mm
Cable Diameter Main Cable 6-26mm
Connector none
Height (H2) 70mm
Length (L) 205mm
Main Cabel max 5 x 10mm²
Main Cable min 3 x 1.5mm²
Resin Quantity 490 ml/671 g
Weight/Unit 1.005kg
Operating Temperature -25 °C to +130 °C
Shelf Life 48 months
Specifications
Country of Origin DE
GTIN-13 / EAN 4031026627304
Packaging Bag
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.38m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00559
Packaging 1 - Weight (kg) 1.505kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.07m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 1
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0056
Packaging 3 - Weight (kg) 2.005kg
Packaging 3 - Width (m) 0.21m
Packaging 4 - Height (m) 1.055m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 130
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.013
Packaging 4 - Weight (kg) 281.65kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +4 °C to +40 °C
ETIM 7.0 Key EC001170
ETIM 8.0 Key EC001170
ETIM 9.0 Key EC001170
