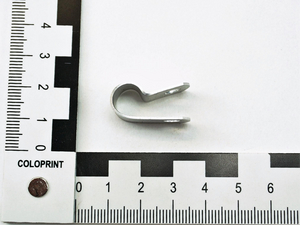

P-clamp, Ø5.2 mm, Dmax=8.0mm, closed, natural, 100pcs.
Art.-No. 211-10050 | ALU5-AL-NA Details

  • Simple and secure pipe or cable fixation
  • Can be combined with chloroprene rubber for vibration resistance
  • Ideal for use in high temperature applications
  • Suitable for applications needing strength of metal components

Request your individual offer now

Application Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector.
Colour Natural (NA)
Fixation Method screw-hole
Local order number ALU5.M3P
Material Aluminium alloy (AL)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION ALU5-AL-NA
Product Family Alu-P-Clamp with / without chloroprene insert
Product Group Aluminium P-Clamps
Short Description Aluminium P-Clip 8 mm
Variant Closed
Bundle Diameter max (Metric) 8.0mm
Bundle ∅ 8.0mm

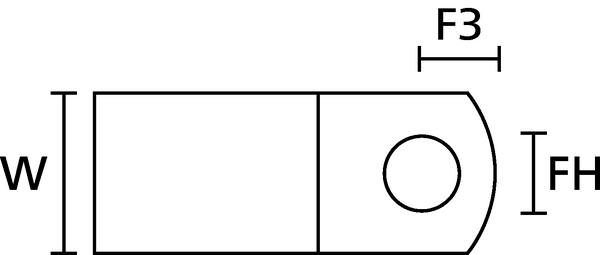

Fixing Hole Centres (F2) 12.6mm
Fixing Hole Centres (F3) 5.5mm
for Hole ∅ (FH) 5.2 mm
Nominal ∅ 8.0mm
Nominal ∅ (imperial) 0.31"
Radius (R) 1.6mm
Wall (WT) 0.8mm
Wall (WT) (imperial) 0.03"
Weight/Unit 0.001378kg
Width (W) 12.7mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +180 °C
Specifications
UV-Stabilised (Yes/No) Yes
Country of Origin DE
Customs Number 76169990
GTIN-13 / EAN 4031026128863
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.16m

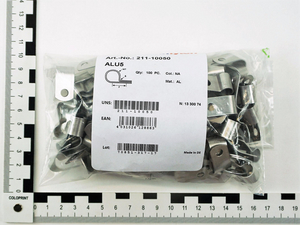

Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.002
Packaging 1 - Weight (kg) 0.141kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.288m
Packaging 3 - Qty 1500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0087
Packaging 3 - Weight (kg) 2.245kg
Packaging 3 - Width (m) 0.178m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 153000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 249.684kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
