02/07/2025

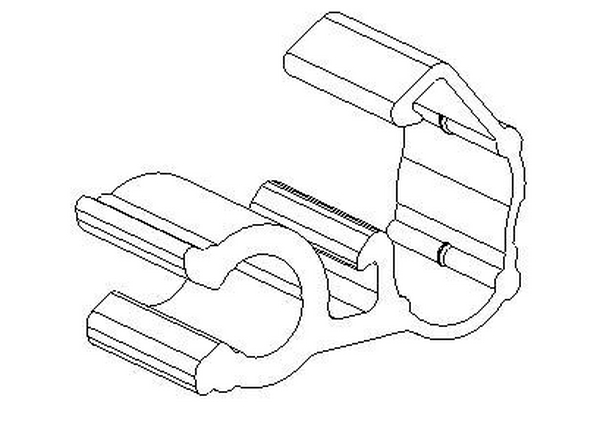

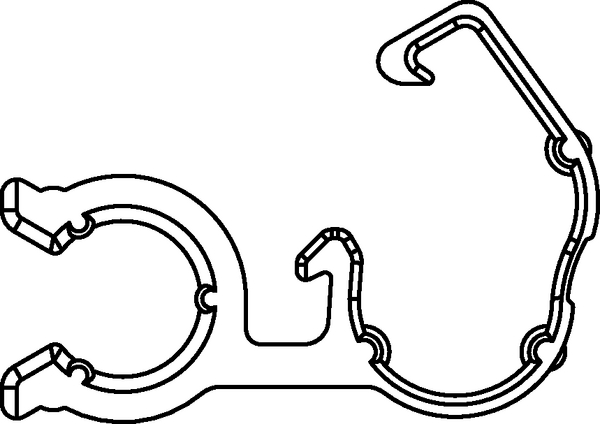

Cable clip, Dmax=6.0mm
Art.-No. 151-14200 | Cable Clip-PA66HIR-NA |

Copied

    • Easy to install without the need for a tool
    • 6 mm entry opens and closes by clicking into the required position
    • Suitable for post-installation of bundles
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Fixation Method Omega Clip
    Material Polyamide 6.6, high impact modified (PA66HIR)
    PART DESCRIPTION Cable Clip-PA66HIR-NA
    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Cable Clip for Cable diameter 5 and 6 mm
    Product Group Bracket cable loom
    Type Cable Clip
    Attach to ⌀ 5.1
    Bundle ⌀ 6.0mm
    Bundle ⌀ max. 6.0mm
    Height (H) 8.15mm
    Length (L) 18.9mm
    Nominal ⌀ 5.14mm
    Nominal ⌀ (imperial) 0.2"
    Weight/Unit 0.0008kg
    Width (W) 12.0mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026228464
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 0.853478kg
    Packaging 1 - Width (m) 0.44m
    Packaging 2 - Type Carton
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 15000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.62217kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 184.38kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
