05/07/2026

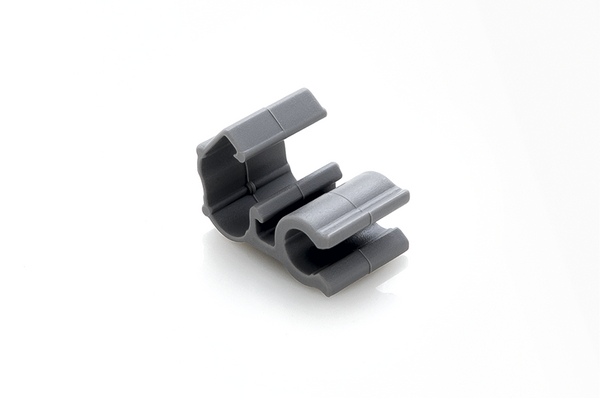

Cable clip, Dmax=6.0mm


Art.-No. 151-14202

| Cable Clip-PA46-GY

 |

Copied
  • Easy to install without the need for a tool
  • 6 mm entry opens and closes by clicking into the required position
  • Suitable for post-installation of bundles


Colour Grey (GY)
Fixation Method Omega Clip
Material Polyamide 4.6 (PA46)
PART DESCRIPTION Cable Clip-PA46-GY
Package Content 1000pcs.
Package Content packed in pcs.
Product Family Cable Clip for Cable diameter 5 and 6 mm
Product Group Cable Set Clip
Type Cable Clip
Weight/Unit 0.0009kg
Attach to ⌀ 5.1
Bundle ⌀ 6.0mm
Bundle ⌀ max. 6.0mm
Height (H) 8.15mm
Length (L) 18.9mm
Nominal ⌀ 5.14mm
Width (W) 12.0mm
ELV compliant Dir. Art. 4 (2) Yes
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026230962
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.355m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.005759875
Packaging 1 - Weight (kg) 0.919kg
Packaging 1 - Width (m) 0.295m
Packaging 2 - Type Carton
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 14000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.768692kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 168000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 174.144kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
