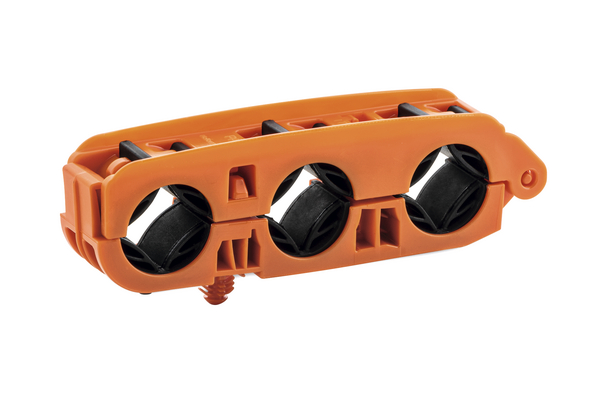

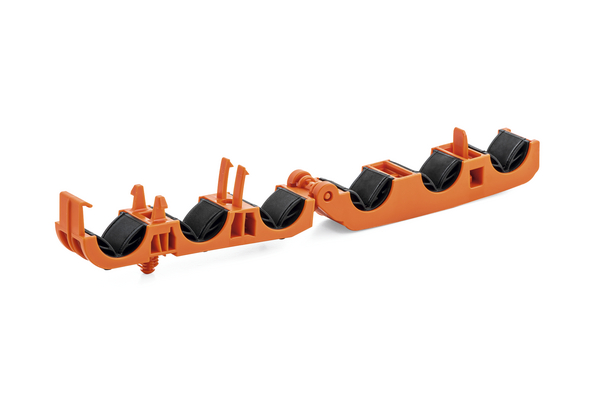

Cable clip for hole (round)/for stud, ⌀6.3 - 6.7 mm, Dmin=14.0mm, Dmax=17.0mm, ⌀M5
Art.-No. 151-03353
| CHP3W14-17-PA46/AEM-OG
|
Copied
- Soft AEM inserts protect the wiring from crushing, abrasion and chemicals

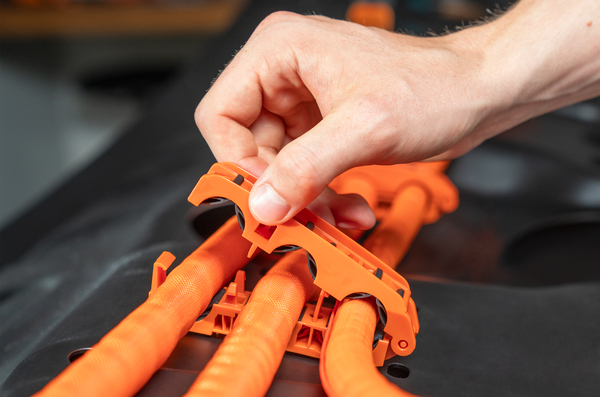

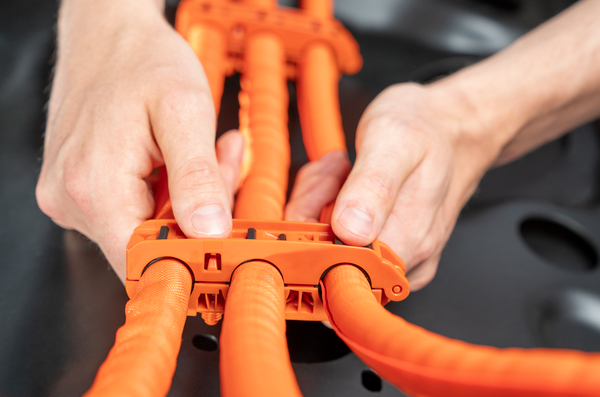

- Easy installation thanks to the special closure
- In PA46 for temperatures up to +150°C
- For fixing on 5.0 mm studs and for round holes with anti-rotation pin
- For 3 cables or multiple routing
- Hinge lock = 14.0 -17.0 mm bundle diameter
Request your individual offer now
Request quote
More products in this product group:
| Application |

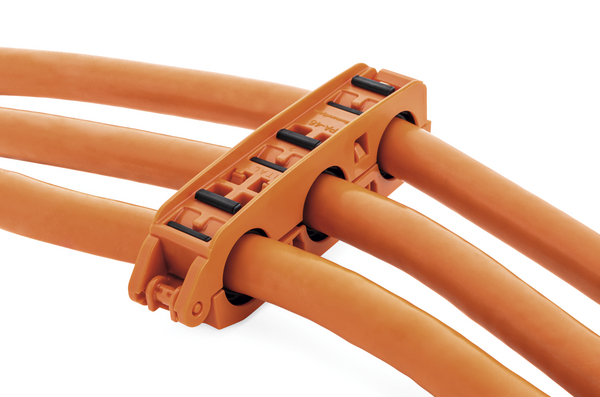

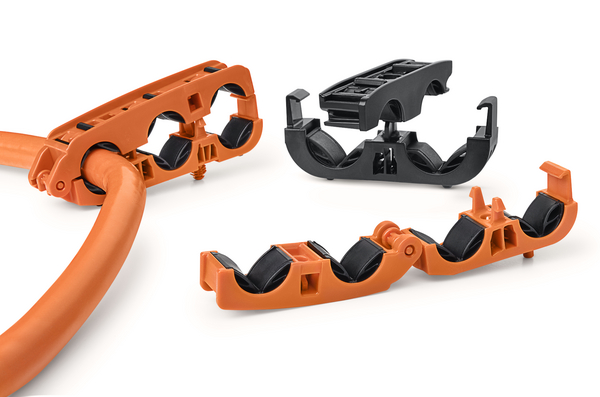

These clips are designed for the installation of high voltage cables in the automotive sector or electric vehicles in general, but can be used for any application requiring parallel wiring. The sturdy clip fixes and guides cables and corrugated conduits in a stable and optimal way, keeping the wiring parallel even in the presence of strong vibrations. The HV-Clips are available as CLP, CMP and CHP parts. The "L" stands for lower performance (EPDM), the "M" for medium performance (heat resistant + AEM) and the "H" for high performance (PA46 + AEM). The HV clips can also be produced with other material combinations or are already available. |
| Colour | Orange (OG) |
| Key product features | vibration absorbing, sealed, for multiple routing |
| Local order number | CHP3W14-17-PA46+AEM |
| Material | Polyamide 4.6 (PA46), Ethylene acrylate copolymer (AEM) |
| PART DESCRIPTION | CHP3W14-17-PA46/AEM-OG |
| Package Content | 125pcs. |
| Package Content packed in | Box |
| Product Family | for multiparallel routing |
| Product Group | Fixing elements for tubes and harnesses |
| Short Description | Cable clip for hole (round)/for stud, ⌀6.3 - 6.7 mm, Dmin=14.0mm, Dmax=17.0mm, ⌀M5 |
| Type | CHP3W14-17 |
| Weight/Unit | 0.03kg |
Download
| Country of Origin | IT |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026651682 |
| Packaging 3 - Height (m) | 0.22m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Qty | 125 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0226m³ |
| Packaging 3 - Weight (kg) | 4.25kg |
| Packaging 3 - Width (m) | 0.27m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 5000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 191.0kg |
| Packaging 4 - Width (m) | 0.8m |
