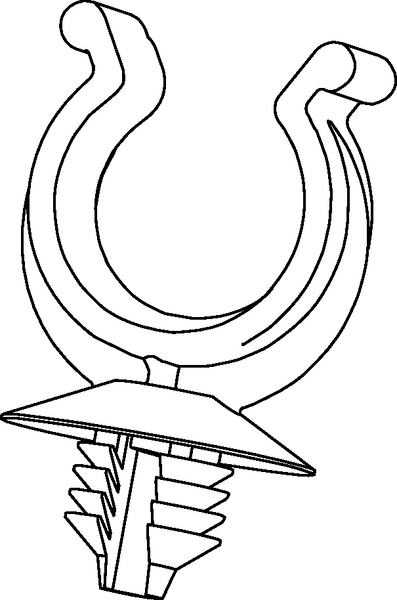

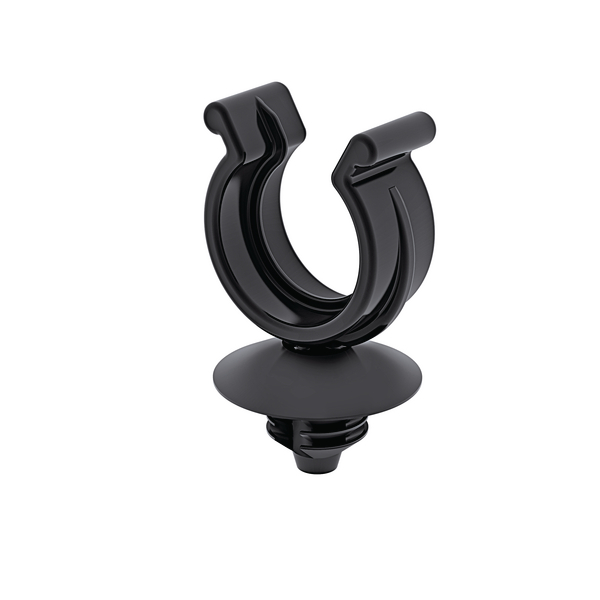

Corrugated tube clip for hole (round), nom⌀10.0mm, black, 500pcs.
Art.-No. 151-14311 | CTC10FT6-PA66HIRHS-BK |

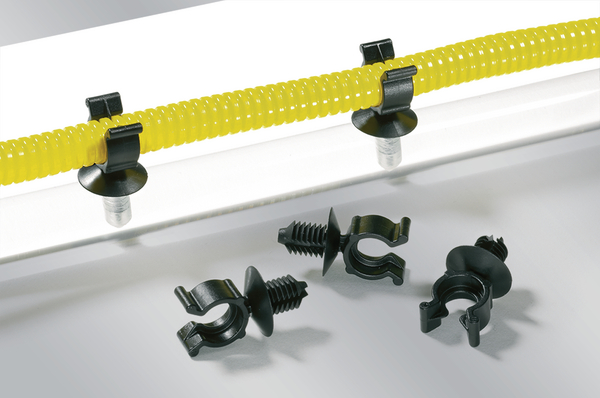

The tubing clips into the CTC clamp and is held firmly.

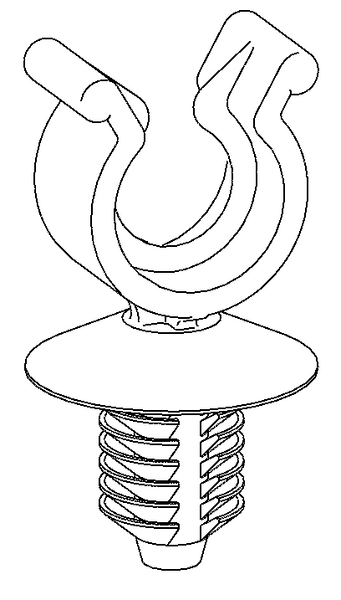

CTC7.5FT6LG convoluted tubing clip.

CTC10FT6LG

PC Clip with Fir Tree Mount

CTC clamps for a variety of nominal diameters
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes
Tube is guided accurately by clicking
Axial slipping is prevented by the inside profile of the clamp

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads CAD-Download

More products in this product group:

Fixing elements for corrugated tubing, with fir tree >

Base Data

Application	CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
Colour	Black (BK)
Fixation Method	Fir Tree
Key product features	for convoluted tubes or with rib, reusable, removable
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CTC10FT6-PA66HIRHS-BK
Package Content	500pcs.
Package Content packed in	Bag
Product Family	CTC-Series
Product Group	Fixing elements for corrugated tubing, with fir tree
Short Description	Fixing Elements with Fir Tree for Corrugated Tubing black
Type	CTC10FT6
Weight/Unit	0.00108kg

Product Dimensions

Attach to ⌀	NW 10
Disc ⌀	16.0mm

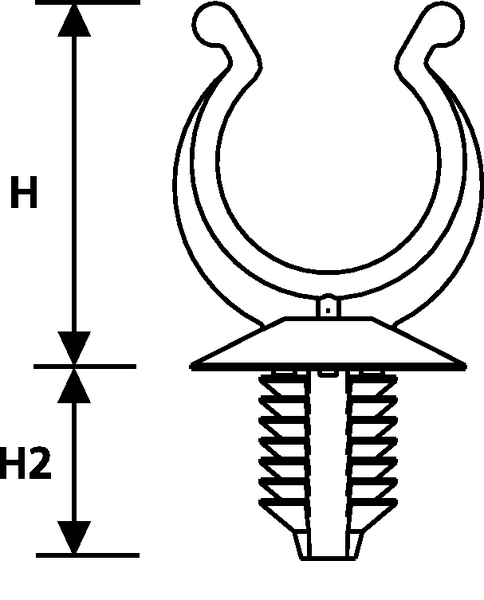

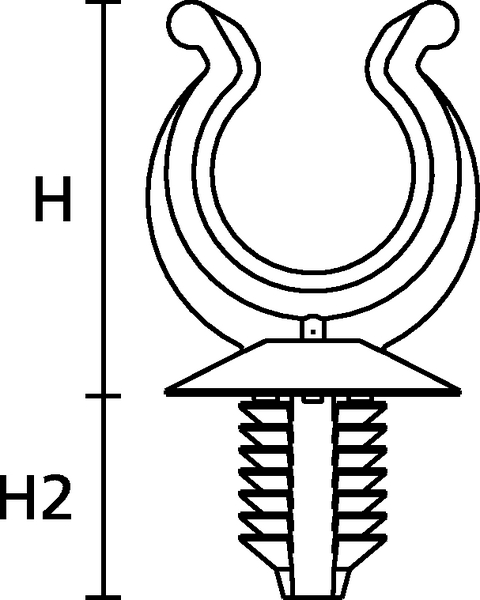

Height (H)	21.4mm
Height (H2)	7.5mm
NW ⌀	10.0mm
Nominal ⌀	10.0mm
Nominal ⌀ (imperial)	0.44"
Panel Thickness	0.7 - 3.0mm

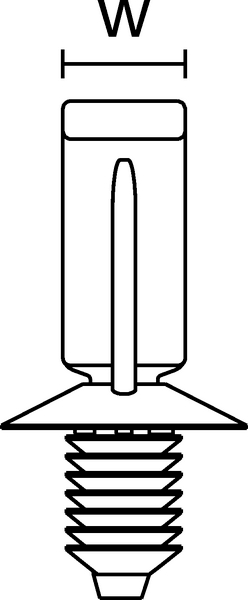

Width (W)	8.0mm
for Hole ⌀ (FH)	6.5 - 7.0 mm
for Panel Thickness min - max	0.8 - 3 mm

Downloads

Specifications

ELV compliant Dir. Art. 4 (2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	FR
Customs Number	39269097
GTIN-13 / EAN	4031026228495
Packaging 1 - Height (m)	0.3m
Packaging 1 - Length (m)	0.625m
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0825m³
Packaging 1 - Weight (kg)	0.593478kg
Packaging 1 - Width (m)	0.44m
Packaging 3 - Height (m)	0.184m
Packaging 3 - Length (m)	0.58m
Packaging 3 - Qty	5000
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.0406m³
Packaging 3 - Weight (kg)	6.53478kg
Packaging 3 - Width (m)	0.38m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	120000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	177.72kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162305
