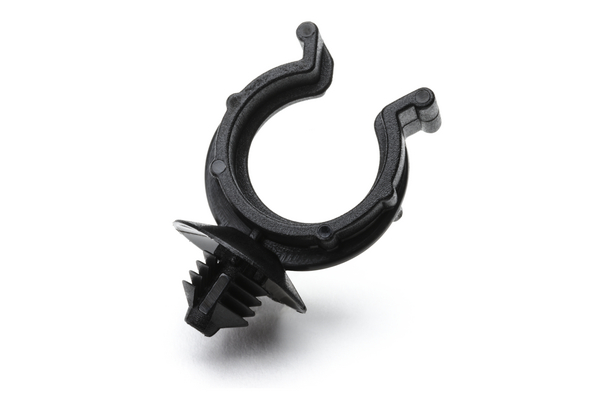

Corrugated tube clip for hole (round), nom∅13.0mm, black, 500pcs.
Art.-No. 151-14312 | CTC13FT6-PA66HIRHS-BK Details

  • CTC clamps for a variety of nominal diameters
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Tube is guided accurately by clicking
  • Axial slipping is prevented by the inside profile of the clamp
Show more

Request your individual offer now

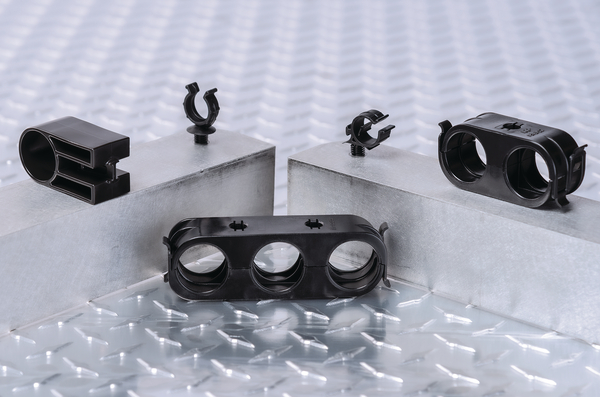

Application CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
Colour Black (BK)
Fixation Method Fir Tree
Key product features for convoluted tubes or with rib, reusable, removable
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CTC13FT6-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family CTC-Series
Product Group Fixing elements for corrugated tubing, with fir tree
Short Description Fixing Elements with Fir Tree for Corrugated Tubing black
Type CTC13FT6
Variant Clips

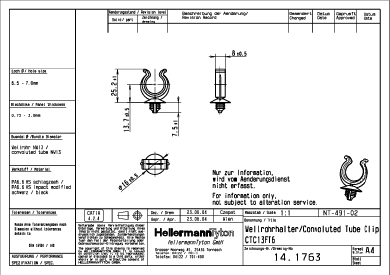

Attach to Ø NW13
Disc ∅ 16.0mm
Height (H) 25.2mm
Height (H2) 7.5mm
Nominal ∅ 13.0mm
Nominal ∅ (imperial) 0.5"
Panel Thickness max. 0.75 - 3.0mm
Weight/Unit 0.0012kg
Width (W) 8.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 3 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026228501
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.653478kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.88956kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 187.56kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
