Cable clip for edge, T=1.0 - 3.0mm, nomØ=5.8 - 6.8 mm, black, 100pcs.
Art.-No. 151-04010 | EC1-3SPDHC6-7-PA66HSUV-BK |  Details

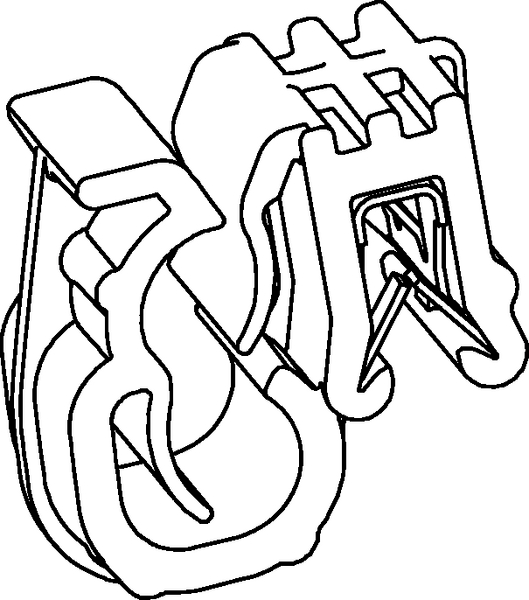

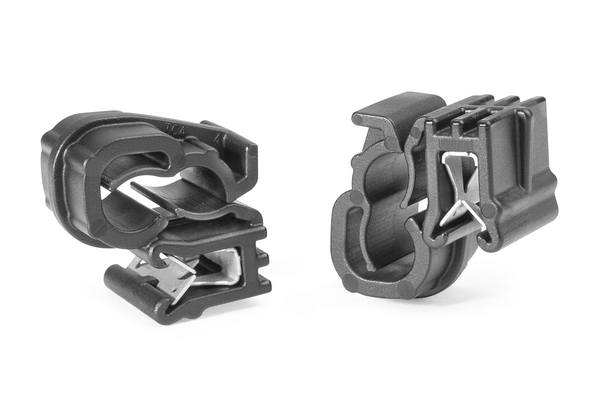

EdgeClip for direct fixation up to two solar cables.

    • for one or two solar cables
    • secure hold of the cables
    • simple change of cables in case of maintenance
    • for edges 1.0 - 3.0 mm
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

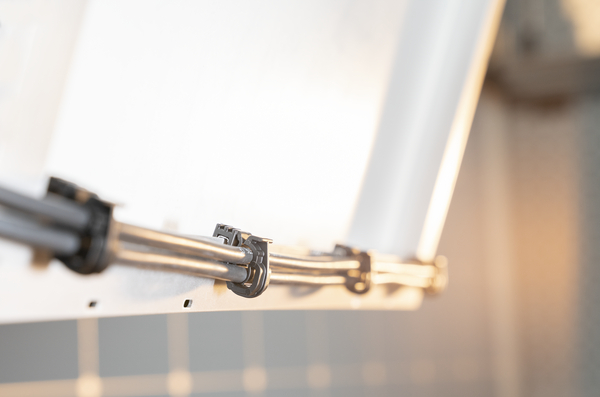

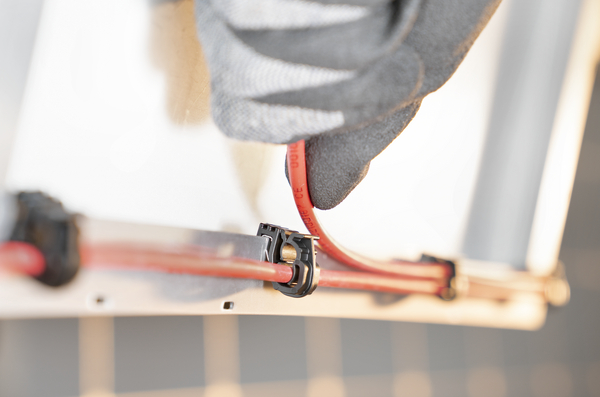

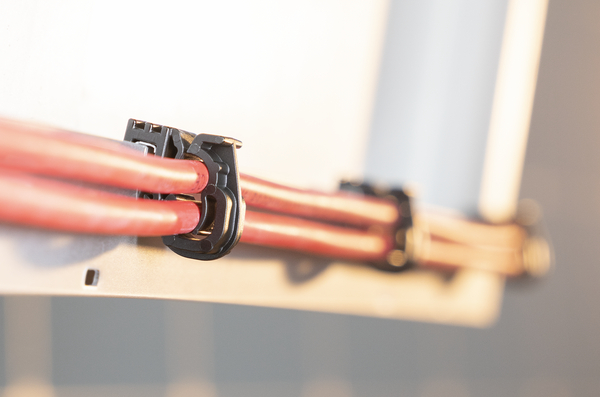

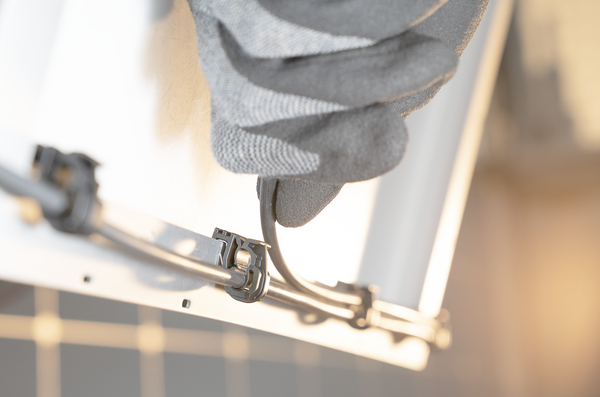

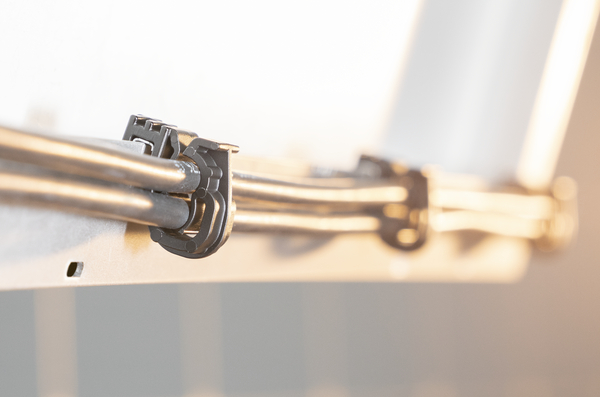

    Application Our EC1-3SPDHC6-7 will help you lay solar cables. You can easily attach this article to your solar modules in order to guide up to two cables into the holder by simply pressing them in.
    Cable ∅ max 6.8mm
    Cable ∅ min 5.8mm
    Colour Black (BK)
    Fixation Method EdgeClip, sideway
    Key product features for multiple routing, for direct fixation, for faster processing
    Local order number EC1-3SPDHC6-7 PA66HSUV BK 100
    Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
    Pack Cont. 100pcs.
    PART DESCRIPTION EC1-3SPDHC6-7-PA66HSUV-BK
    Product Family EdgeClip series for solar panels
    Product Group Fixing element for solar cables
    Short Description EdgeClip for edges 1.0 - 3.0 mm, for parallel routing for up to two solar cables.
    Attach to Ø 5.8 - 6.8mm
    Bundle Diameter Nom. (ND) 5.8 - 6.8 mm
    for Panel Thickness min - max 1 - 3 mm
    Height (H) 20.9mm
    Length (L) 21.9mm
    Panel Thickness max. 1.0 - 3.0mm
    Weight/Unit 0.00272kg
    Width (W) 14.0mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026729701
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.25m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00165m³
    Packaging 1 - Weight (kg) 0.281029kg
    Packaging 1 - Width (m) 0.22m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
