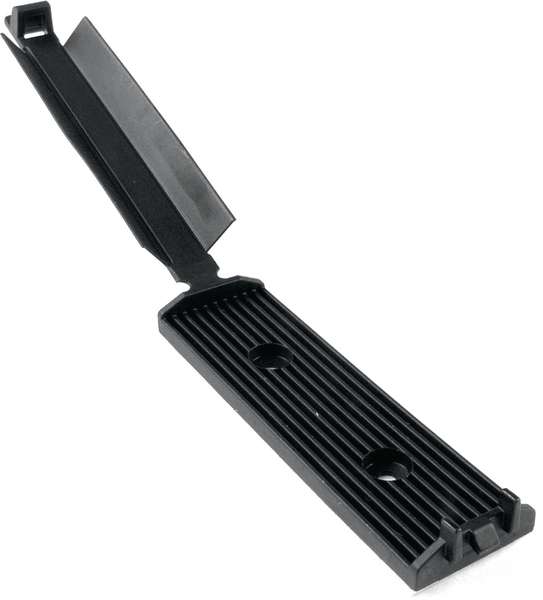

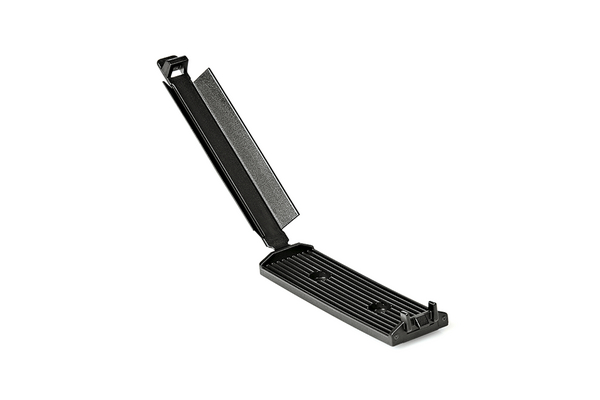

Cable clip for adhesive use, ∅3.1 mm
Art.-No. 151-15500 | FKH50A-PA66HIR-BK Details

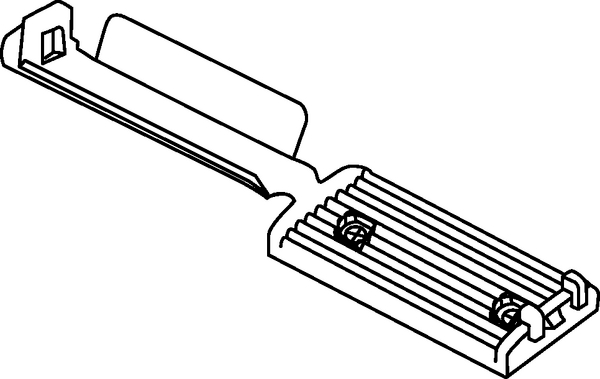

  • One-piece fixing mount for flat ribbon and round cables
  • Increased mounting area ensures proper bonding
  • Quick and easy installation
  • Can be released and re-used easily
  • Cable is gently fastened due to soft wings
Show more

Request your individual offer now

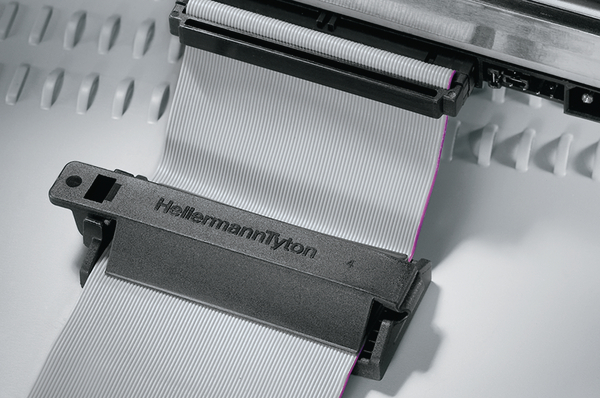

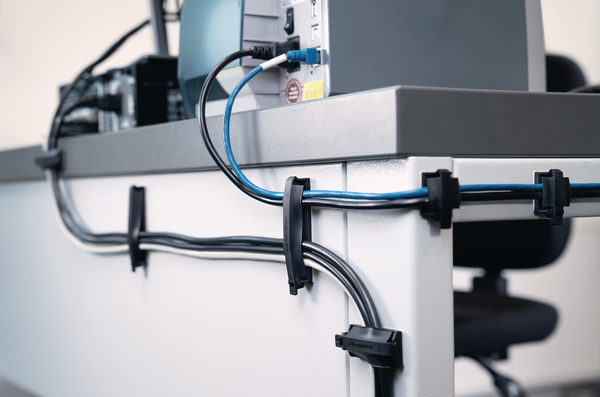

Application These clips are ideal for use in applications which are difficult to access, or for areas where a self adhesive solution is the only possible fixing method (for example 'holes' would be unacceptable). The FKH clips are designed to retain flat ribbon cables - ideal for use in computer equipment, gaming machines and domestic appliances. Available as a self-adhesive mount or screw mount.
Colour Black (BK)
Fixation Method adhesive
Key product features for multiple routing
Material Polyamide 6.6, high impact modified (PA66HIR)
PART DESCRIPTION FKH50A-PA66HIR-BK
Pack Cont. 100pcs.
Package Content packed in pcs.

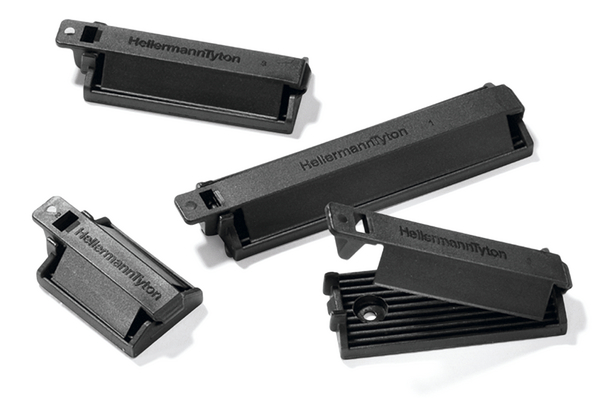

Product Family FKH-Series, self-adhesive
Product Group Flat ribbon and round cable mounts
Short Description Flat Ribbon Cables Self Adhesive / Screw Fixing 56,5x25 mm black
Type FKH50A
Variant Mounting clip
Attach to Ø 50.0
Fixing Hole Centres (F) 38.0mm
For Cable Width Max (Imperial) 2.05"
For Cable Width max. 52.0mm

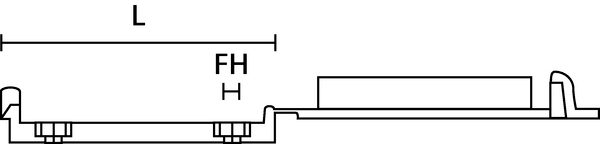

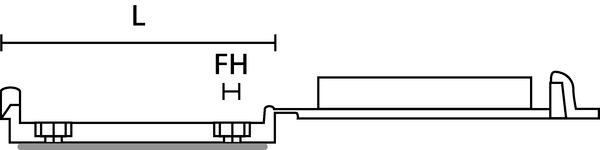

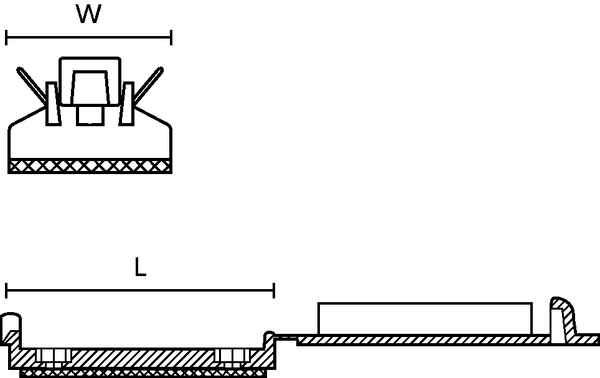

Length (L) 56.5mm
Weight/Unit 0.00734kg

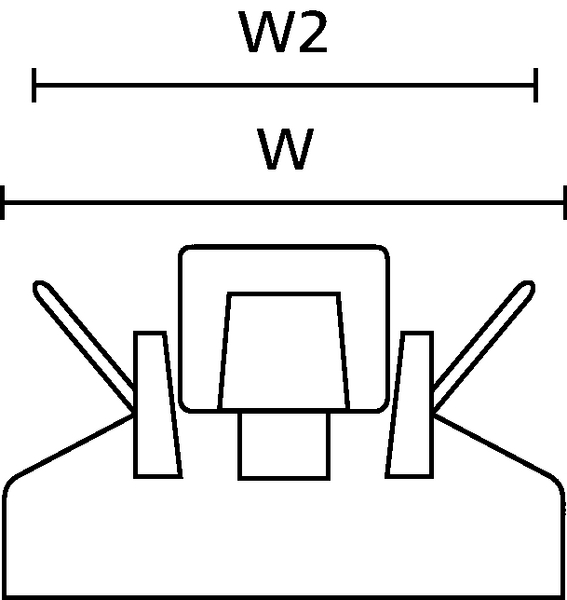

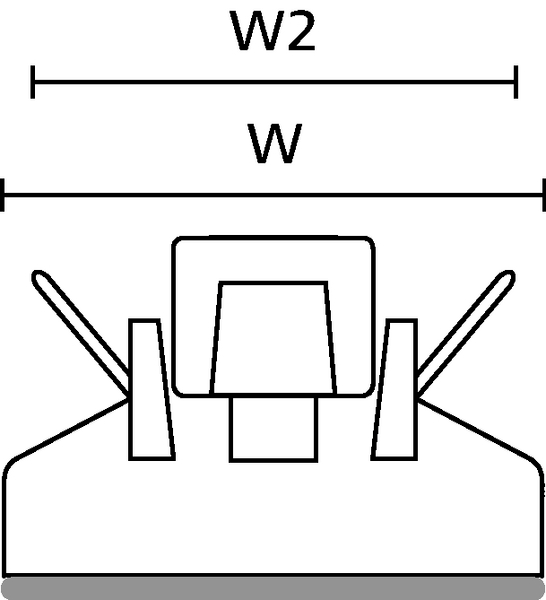

Width (W) 25.0mm
Width (W2) 22.0mm
for Hole ∅ (FH) 3.1 mm
Adhesive Acrylate with base of polyurethane foam
Adhesive Operating Temperature to +105 °C
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL94 HB (excluding adhesive)
Hazardous Goods No
Operating Temperature -40 °C to +80 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026208961
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00488
Packaging 1 - Weight (kg) 0.763135kg
Packaging 1 - Width (m) 0.33m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 4.450675kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 10000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 110.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702
