P-clamp, Ø5.2 mm, Dmax=25.5mm, closed, natural, 500pcs.
Art.-No. 211-60159 | H15P-PA66-NA Details

  • Manufactured from polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties

Request your individual offer now

Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Natural (NA)
Fixation Method screw-hole
Local order number H15P.NN6P
Material Polyamide 6.6 (PA66)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION H15P-PA66-NA
Product Family HP-Series
Product Group Plastic P-Clamps
Short Description Plastic P-Clip PA66 natural 25.5 mm
Variant Closed

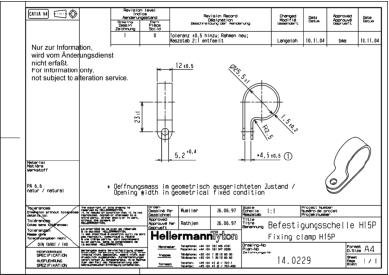

Bundle Diameter max (Metric) 25.5mm
Bundle ∅ 25.5mm
Fixing Hole Centres (F) 23.0mm
Fixing Hole Centres (F) (imperial) 0.91"
for Hole ∅ (FH) 5.2 mm
Nominal ∅ 25.5mm
Nominal ∅ (imperial) 1"
Radius (R) 2.5mm
Wall (WT) 1.5mm
Wall (WT) (imperial) 0.059"
Weight/Unit 0.002112kg
Width (W) 12.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Nato number 5340-12-188-4873
Operating Temperature -40 °C to +85 °C
Specifications
Specifications EN 45545-2
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026129532

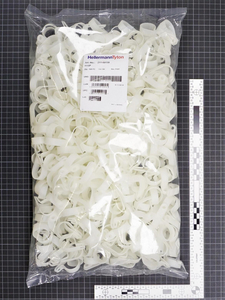

Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.51m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01071
Packaging 1 - Weight (kg) 1.085kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 5.463912kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 130.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
