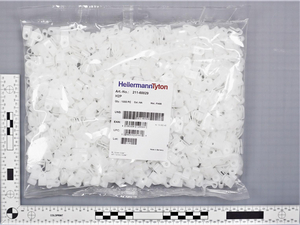

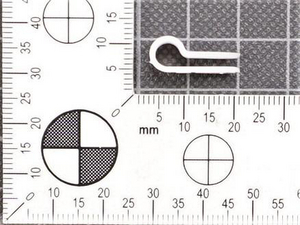

P-clamp closed, Ø4.2 mm, Dmax=5.0mm, natural, 1000pcs.
Art.-No. 211-60029 | H2P-PA66-NA Details

  • Manufactured from polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties

Request your individual offer now

Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Natural (NA)
Fixation Method screw-hole
Local order number H2P.NN7P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION H2P-PA66-NA
Pack Cont. 1000pcs.
Package Content packed in pcs.
Product Family HP-Series
Product Group Plastic P-Clamps
Short Description Plastic P-Clip PA66 natural 5 mm
Type H2P
Variant Closed
Bundle Diameter max (metric) 5.0mm
Bundle ∅ 5.0mm
Fixing Hole Centres (F) 9.5mm
Fixing Hole Centres (F) (imperial) 0.37"
Nominal ∅ 5.0mm
Nominal ∅ (imperial) 0.19"
Radius (R) 1.0mm
Radius (R) (imperial) 0.04"
Wall (WT) 1.0mm
Wall (WT) (imperial) 0.039"
Weight/Unit 0.000344kg
Width (W) 10.0mm
for Hole ∅ (FH) 4.2 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Nato number 5340-12-146-8251
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications EN 45545-2
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026129389
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.29m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00192
Packaging 1 - Weight (kg) 0.397478kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 4.19478kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 480000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 222.12kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
