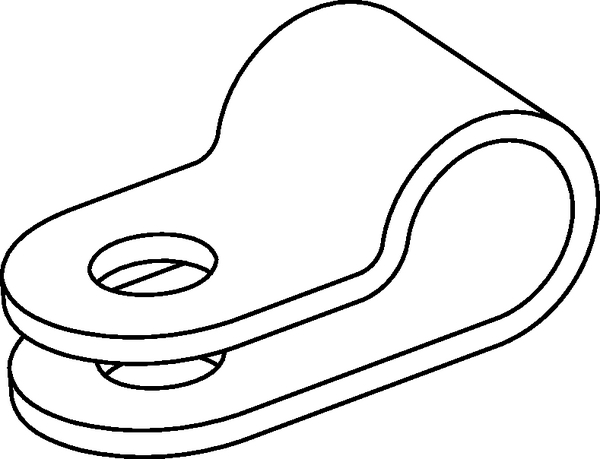

P-clamp, Ø4.2 mm, Dmax=8.0mm, closed, natural, 1000pcs.
Art.-No. 211-60049 | H4P-PA66-NA Details

  • Manufactured from polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties

Request your individual offer now

Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Natural (NA)
Fixation Method screw-hole
Local order number H4P.NN7P
Material Polyamide 6.6 (PA66)
Pack Cont. 1000pcs.
Package Content packed in pcs.
PART DESCRIPTION H4P-PA66-NA
Product Family HP-Series
Product Group Plastic P-Clamps
Short Description Plastic P-Clip PA66 natural 8 mm
Variant Closed
Bundle Diameter max (Metric) 8.0mm
Bundle ∅ 8.0mm
Fixing Hole Centres (F) 10.0mm
Fixing Hole Centres (F) (imperial) 0.39"
for Hole ∅ (FH) 4.2 mm
Nominal ∅ 8.0mm
Nominal ∅ (imperial) 0.31"
Radius (R) 1.0mm
Wall (WT) 1.2mm
Wall (WT) (imperial) 0.047"
Weight/Unit 0.00052kg
Width (W) 10.0mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Nato number 5340-12-141-3252
Operating Temperature -40 °C to +85 °C
Specifications
Specifications EN 45545-2
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026129402
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0027
Packaging 1 - Weight (kg) 0.573478kg
Packaging 1 - Width (m) 0.27m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 6000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 3.660868kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 288000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 196.584kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
