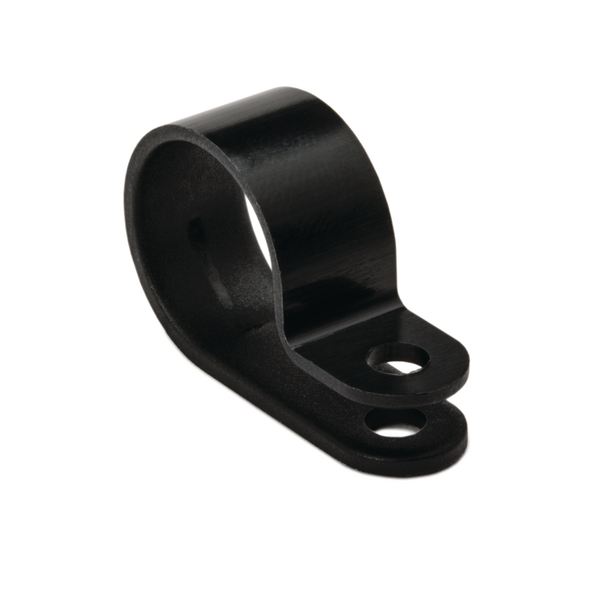

P-clamp closed, Ø4.2 mm, Dmax=16.0mm, black, 100pcs.
Art.-No. 211-60008 | H9P-PA66HS-BK Details

  • Manufactured from polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties

Request your individual offer now

Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Black (BK)
Fixation Method screw-hole
Local order number H9P.HB3P
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION H9P-PA66HS-BK
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family HP-Series
Product Group Plastic P-Clamps
Short Description Plastic P-Clip PA66HS black 16 mm
Type H9P
Variant Closed
Bundle Diameter max (metric) 16.0mm
Bundle ∅ 16.0mm
Fixing Hole Centres (F) 16.0mm
Fixing Hole Centres (F) (imperial) 0.63"
Nominal ∅ 16.0mm
Nominal ∅ (imperial) 0.63"
Radius (R) 1.5mm
Radius (R) (imperial) 0.06"
Wall (WT) 1.5mm
Wall (WT) (imperial) 0.059"
Weight/Unit 0.001166kg
Width (W) 10.0mm
for Hole ∅ (FH) 4.2 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026240879
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.185m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00107
Packaging 1 - Weight (kg) 0.1276kg
Packaging 1 - Width (m) 0.29m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 1500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 3.12217kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 170.52kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
