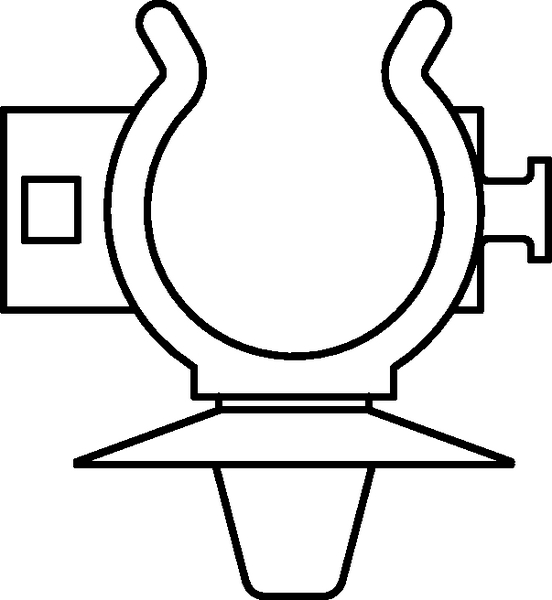

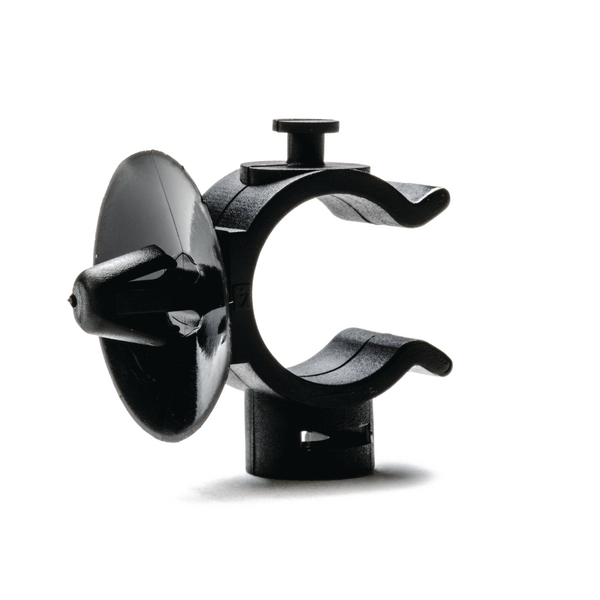

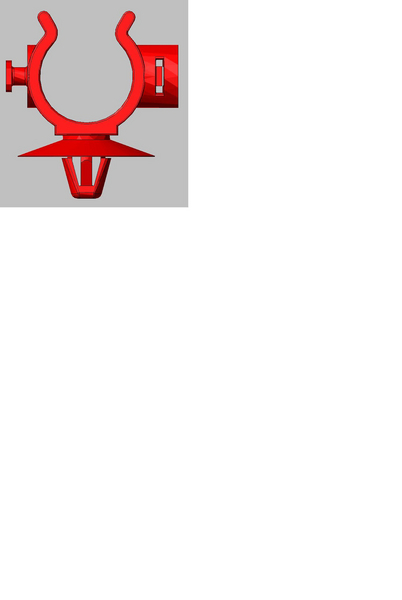

Cable clip for hole (round), ⌀6.3 mm, Dmin=13.7mm, Dmax=14.7mm
Art.-No. 151-14500
| IPC15AH-PA66-BK
|
Copied
- Fixing elements with fir tree or arrow head
- Simply clip on a wire or hose
- Clips to be attached into bore hole
- Bundles can be released at any time
Request your individual offer now
Request quote
More products in this product group:
| Application | Originally designed for the automotive industry they are finding a wide and time saving variety of applications in all industries and where the use of a cable is not possible. |
| Colour | Black (BK) |
| Local order number | IPC15AH.IB3P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | IPC15AH-PA66-BK |
| Package Content | 100pcs. |
| Package Content packed in | Bag |
| Product Family | IPC-Series |
| Product Group | Fixing Elements for Tubes and Harnesses, interconnectable |
| Short Description | Harness Clip, open, round hole 6.3 mm, arrow head, interconnectable, black |
| Type | IPC15AH |
| Weight/Unit | 0.00333kg |
Download
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660308000 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.305m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.002167025m³ |
| Packaging 1 - Weight (kg) | 0.333kg |
| Packaging 1 - Width (m) | 0.203m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 10.72kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 235.4kg |
| Packaging 4 - Width (m) | 0.8m |
