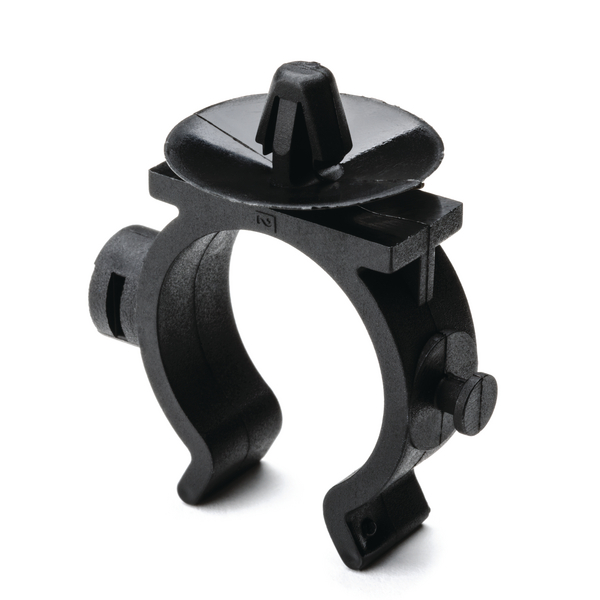

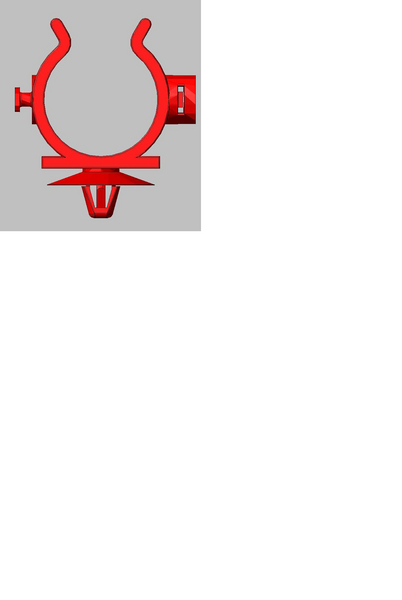

Cable clip for hole (round), ∅6.3 mm, Dmin=21.0mm, Dmax=25.0mm
Art.-No. 151-14601 | IPC23AH-PA66-BK Details

  • Fixing elements with fir tree or arrow head
  • Simply clip on a wire or hose
  • Clips to be attached into bore hole
  • Bundles can be released at any time

Request your individual offer now

Application Originally designed for the automotive industry they are finding a wide and time saving variety of applications in all industries and where the use of a cable is not possible.
Colour Black (BK)
Local order number IPC23AH.NB3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION IPC23AH-PA66-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family IPC-Series
Product Group Fixing Elements for Tubes and Harnesses, interconnectable

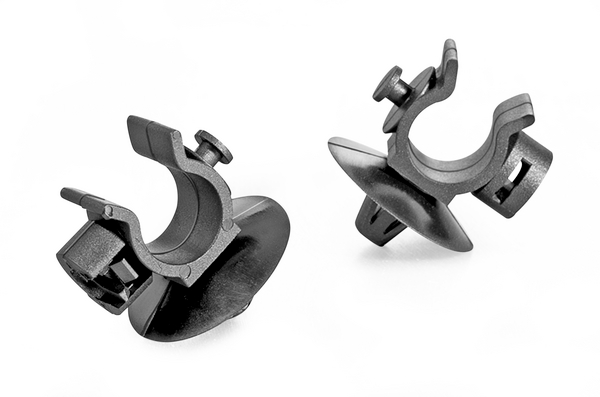

Short Description Harness Clip, open, round hole 6.3 mm, arrow head, interconnectable, black
Type IPC23AH
Bundle Diameter max (metric) 25.0mm
Bundle ∅ 21.0-25.0mm
Bundle ∅ min. 21.0mm
Disc ∅ 22.0mm

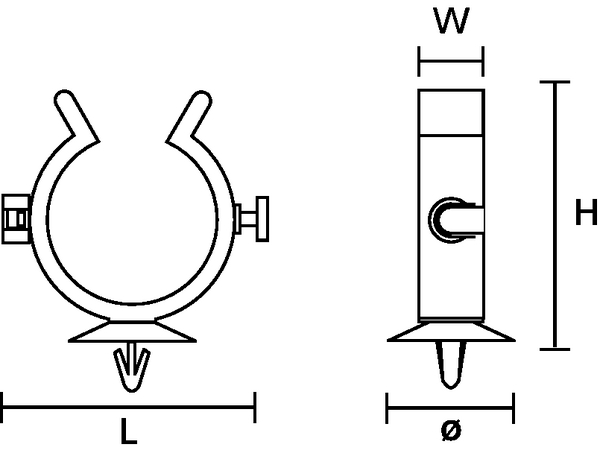

Height (H) 34.0mm
Length (L) 36.7mm
Stud ∅ (imperial) 0.2"
Weight/Unit 0.00435kg
Width (W) 10.0mm
for Hole ∅ (FH) 6.3 mm
for Panel Thickness min - max 0.6 - 1.6 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660308079
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00135
Packaging 1 - Weight (kg) 0.435kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 2300
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 10.807kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 46000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 237.14kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
