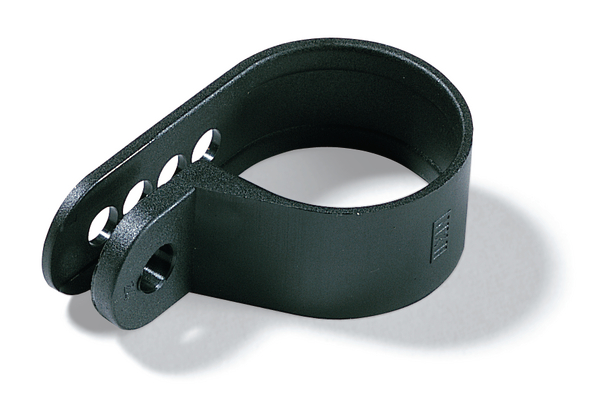

P-clamp closed, ∅4.0 mm, Dmax=20.0mm, black, 100pcs.
Art.-No. 211-00901 | NX11-PA66-BK Details

  • Manufactured from polyamide
  • Good temperature resistance and high strength
  • Wide range of sizes for every application
  • Can be used without cable ties

Request your individual offer now

Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour Black (BK)
Fixation Method screw-hole
Local order number NX11.NB3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION NX11-PA66-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family HP-Series
Product Group Plastic P-Clamps
Type NX11
Variant Closed
Bundle Diameter max (metric) 20.0mm
Bundle ∅ 20.0mm

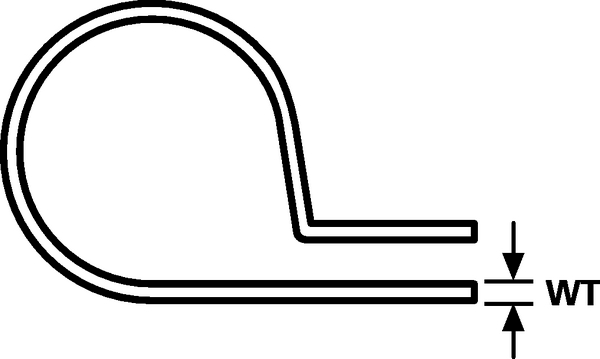

Wall (WT) 1.3mm

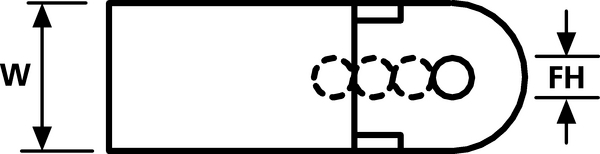

Width (W) 12.6mm
for Hole ∅ (FH) 4.0 mm
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660002601
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Width (m) 0.39m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
