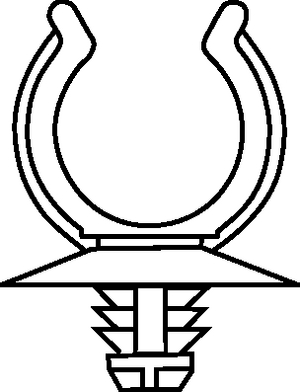

Cable clip, T=0.6 - 3.3mm, ∅6.15 - 6.45 mm, Dmin=13.8mm, Dmax=14.2mm
Art.-No. 151-15101 | PC14PT-BK Details

  • For fixing and bundling convoluted tubes and pipes
  • Suitable for nearly every application

Request your individual offer now

Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour Black (BK)
Fixation Method Fir Tree
Local order number PC14PT.NB3P
PART DESCRIPTION PC14PT-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family PC-Series with Firtree
Product Group Fixing Elements for Tubes and Harnesses
Short Description Harness Clip, open, round hole 6.15 - 6.45 mm, fir tree, black
Type PC14PT
Bundle Diameter max (metric) 14.2mm
Bundle ∅ 13.8-14.2mm
Bundle ∅ min. 13.8mm
Disc ∅ 22.0mm
Height (H) 20.6mm
Height (H2) 7.6mm
Length (L) 22.0mm
Panel Thickness max. 0.6 - 3.3mm
Weight/Unit 0.001558kg
Width (W) 10.0mm
for Hole ∅ (FH) 6.15 - 6.45 mm
for Panel Thickness min - max 0.6 - 3.3 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin BR
Customs Number 39269097
GTIN-13 / EAN 5022660313592
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00132
Packaging 1 - Weight (kg) 0.156kg
Packaging 1 - Width (m) 0.105m
Packaging 3 - Height (m) 0.26m
Packaging 3 - Length (m) 0.48m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0474
Packaging 3 - Weight (kg) 8.25kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.184m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.137
Packaging 4 - Weight (kg) 153.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
