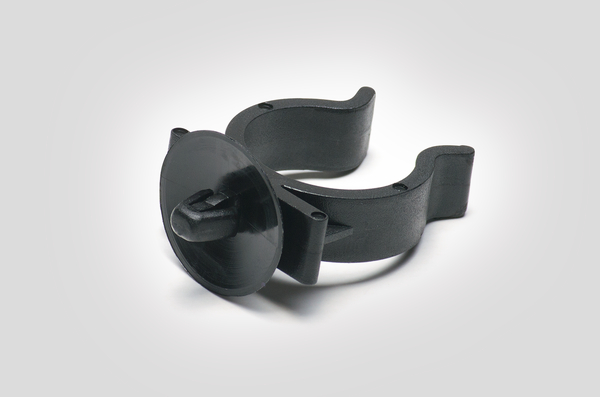

Cable clip, ⌀6.3 mm, Dmin=22.0mm, Dmax=24.0mm
Art.-No. 151-14302 | PC23-PA66-NA

Copied
  • Fixing elements with fir tree or arrowhead
    Simply clip on a wire or hose
    Clips to be attached into bore hole
    Bundles can be released at any time

Request your individual offer now

Application Originally designed for the automotive industry they are finding a wide and time saving variety of applications in all industries and where the use of a cable is not possible.
Colour Natural (NA)
Fixation Method arrowhead
Local order number PC23.NN4E
Material Polyamide 6.6 (PA66)
PART DESCRIPTION PC23-PA66-NA
Package Content 200pcs.
Package Content packed in Bag
Product Family PC-Series with Arrowhead
Product Group Fixing Elements for Tubes and Harnesses
Type PC23
Weight/Unit 0.0005kg
Attach to ⌀ 22.0 - 24.0 mm
Bundle ⌀ 22.0-24.0mm
Bundle ⌀ max. 24.0mm
Bundle ⌀ min. 22.0mm
Disc ⌀ 22.0mm

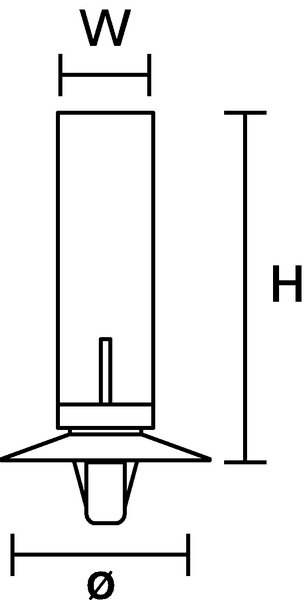

Height (H) 36.0mm
Height (H2) 6.5mm
Length (L) 22.0mm
Width (W) 10.0mm
for Hole ⌀ (FH) 6.3 mm
for Panel Thickness min - max 0.6 - 1.6 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660313639
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.356m
Packaging 1 - Qty 200
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.005429
Packaging 1 - Weight (kg) 0.100001kg
Packaging 1 - Width (m) 0.305m
Packaging 3 - Height (m) 0.172m
Packaging 3 - Length (m) 0.575m
Packaging 3 - Qty 2400
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0375
Packaging 3 - Weight (kg) 1.7kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.004m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.964
Packaging 4 - Weight (kg) 55.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162906
