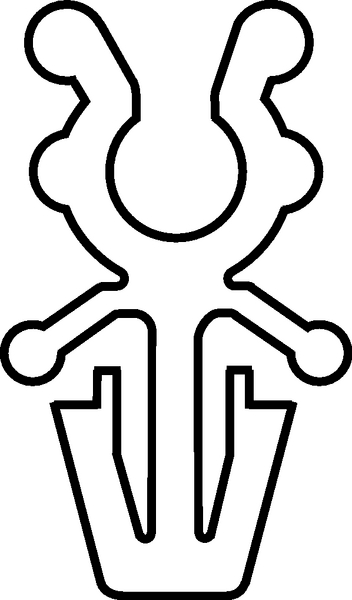

Cable clip for hole (round), ⌀4.7 mm, Dmax=3.5mm
Art.-No. 151-14700 | PC35LAH-PA66-BK

Copied
  • Fixing elements with fir tree or arrow head

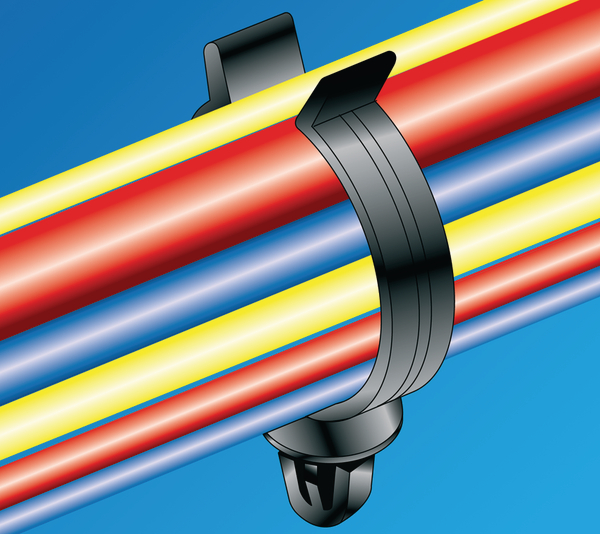

    Simply clip on a wire or hose
    Clips to be attached into bore hole
    Bundles can be released at any time

Request your individual offer now

Application Originally designed for the automotive industry they are finding a wide and time saving variety of applications in all industries and where the use of a cable is not possible.
Colour Black (BK)
Fixation Method arrowhead
Local order number PC35LAH.NB3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION PC35LAH-PA66-BK
Package Content 100pcs.
Package Content packed in Bag
Product Family PC-Series with Arrowhead
Product Group Fixing Elements for Tubes and Harnesses
Short Description Harness Clip, open, round hole 4.7 mm, arrow head, black
Type PC35LAH
Weight/Unit 0.0005kg
Attach to ⌀ 3.5
Bundle ⌀ 3.5mm
Bundle ⌀ max. 3.5mm
Height (H) 15.5mm
Height (H2) 5.0mm
Length (L) 9.0mm
Nominal ⌀ 3.5mm
Width (W) 8.0mm
for Hole ⌀ (FH) 4.7 mm
for Panel Thickness min - max 0.8 - 2 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660313646
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.203m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0007714
Packaging 1 - Weight (kg) 0.05kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 20000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 10.73kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 400000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 235.6kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162906
