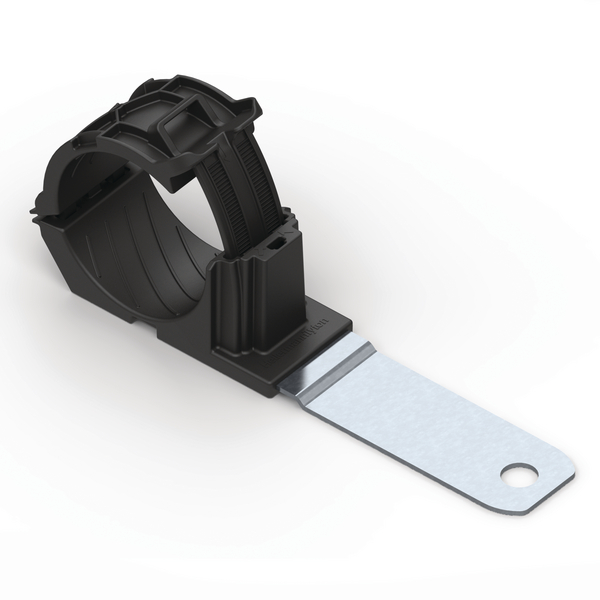

P-clamp long, Ø8.4 mm, Dmin=36.0mm, Dmax=51.0mm, 180°, black, 140pcs.
Art.-No. 151-02735 | RCD180LM8SS-PA666V0/SS304-BK Details

  • Ratchet P-Clamp D-Series for bundle diameters from 35.1 mm to 51.0 mm
  • One-piece ratchet closure design allows for easy installation during pre- or final assembly
  • Multiple configurations handle a wide range of diameters and applications, reducing part inventory
  • Clamp interior is designed to guide and center bundle to reduce pinching
  • Easy release feature allows for quick adjustments and maintenance
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
  • Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Show more

Request your individual offer now

Application The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour Black (BK)
Fixation Method Screw Mounting
Key product features vibration absorbing, reusable, removable, for multiple routing
Local order number 151-02735
Material Polyamide 6.6/6, V0 (PA666V0), Stainless Steel (SS304)
PART DESCRIPTION RCD180LM8SS-PA666V0/SS304-BK
Pack Cont. 140pcs.
Package Content packed in Bag
Product Family For bundle diameters from 36.0 mm to 51.0 mm, D-Series
Product Group Ratchet P-Clamp
Short Description Ratchet P-Clamp, for bundle diameters 36-51 mm
Type RCD180LM8SS
Variant Long
Angle 180
Bundle Diameter max (metric) 51.0mm
Bundle ∅ 36.0-51.0mm
Bundle ∅ min. 36.0mm
Fixing Hole Centres (F) 121.0mm
Fixing Hole Centres (F) (imperial) 4.76"
Length (L) 232.5mm
Length (L2) 166.5mm
Min.Tensile Strength 445N
Stud ∅ M8
Weight/Unit 0.062656kg
Width (W) 34.9mm
Width (W2) 30.0mm
for Hole ∅ (FH) 8.4 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -40 °C to +120 °C
ROHS compliant Yes
Specifications
Specifications EN 45545-2
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026633763
Packaging 1 - Qty 140
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 8.771841kg
Packaging 3 - Height (m) 0.219075m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 140
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0529
Packaging 3 - Weight (kg) 9.541841kg
Packaging 3 - Width (m) 0.3984625m
Packaging 4 - Height (m) 1.239m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2100
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.189
Packaging 4 - Weight (kg) 164.128kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
