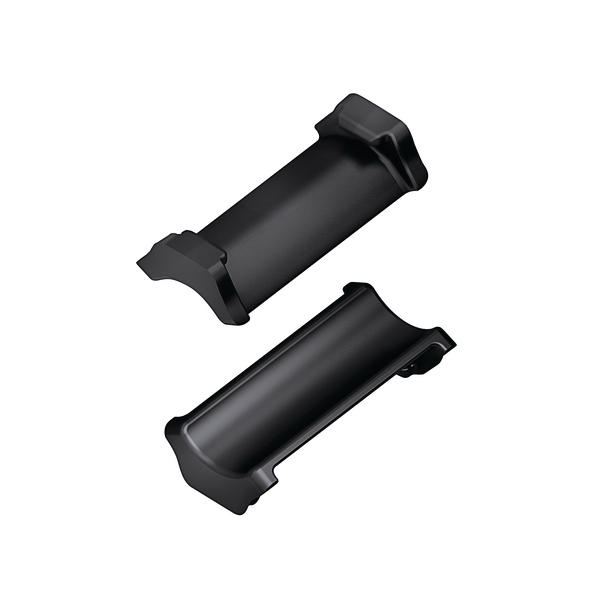

Accessory, Ratchet Clamps, black, 100pc. (RCINSERTB)
Art.-No. 151-01531 | RCINSERTB-TPE-BK Details

  • Soft inserts for an additional level of protection

Request your individual offer now

Application Soft material inserts snap precisely into the body of the clamp to provide an enhanced level of protection for applications with movement, high vibration or soft cable bundles. An integrated rib on the top of the insert prevents a lateral displacement of the corrugated tube. This provides secure fastenings of a corrugated tube with vertical and horizontal (lateral displacement at e.g. acceleration) alignment.
Colour Black (BK)
Description For B-Series
Fixation Method Others
Local order number 151-01531
Material Thermoplastic Elastomer (TPE)
PART DESCRIPTION RCINSERTB-TPE-BK
Pack Cont. 100pc.
Package Content packed in Bag
Product Family Protection Inserts
Product Group Ratchet P-Clamp Accessories
Short Description Protection profile, TPE, black
Type RCINSERTB
Variant Rubber profile
Bundle Diameter max (metric) 15.5mm
Bundle ∅ 8.7-15.5mm
Bundle ∅ min. 8.7mm
Weight/Unit 0.001882kg
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +90 °C
Plenum Rating AH-2
ROHS compliant Yes
Specifications
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UL-File Number E64139
UV-Stabilised Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026545011
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.295m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00268
Packaging 1 - Weight (kg) 0.1962kg
Packaging 1 - Width (m) 0.182m
Packaging 3 - Height (m) 0.1698625m
Packaging 3 - Length (m) 0.20955m
Packaging 3 - Qty 400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0057
Packaging 3 - Weight (kg) 0.8948kg
Packaging 3 - Width (m) 0.15875m
Packaging 4 - Height (m) 1.334m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 78400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.281
Packaging 4 - Weight (kg) 196.381kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC002935
ETIM 8.0 Key EC002935
ETIM 9.0 Key EC002935
UNSPSC Key 39121702
