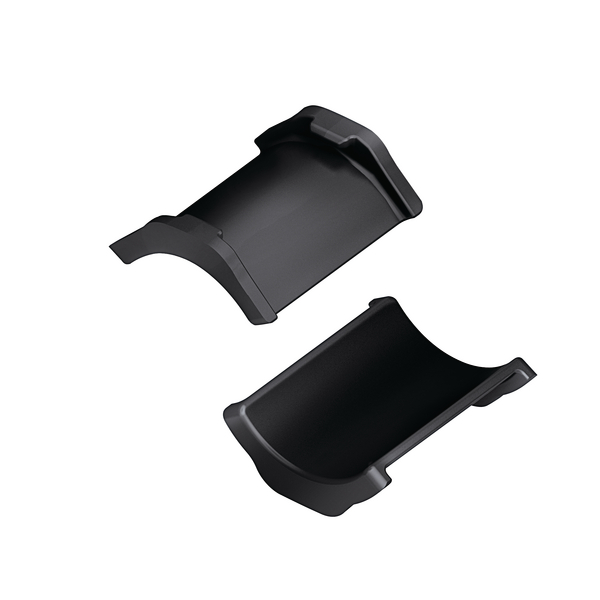

Accessory, Ratchet P-Clamp, black, 100pc. (RCINSERTC)
Art.-No. 151-01532 | RCINSERTC-TPE-BK Details

  • Soft inserts for an additional level of protection

Request your individual offer now

Application Soft material inserts snap precisely into the body of the clamp to provide an enhanced level of protection for applications with movement, high vibration or soft cable bundles. An integrated rib on the top of the insert prevents a lateral displacement of the corrugated tube. This provides secure fastenings of a corrugated tube with vertical and horizontal (lateral displacement at e.g. acceleration) alignment.
Colour Black (BK)
Description For C-Series
Fixation Method Others
Local order number 151-01532
Material Thermoplastic Elastomer (TPE)
Pack Cont. 100pc.
Package Content packed in Bag
PART DESCRIPTION RCINSERTC-TPE-BK
Product Family Protection Inserts
Product Group Ratchet P-Clamp Accessories
Short Description Protection profile, TPE, black
Variant Rubber profile
Bundle Diameter max (Metric) 32.0mm
Bundle ∅ 15.4-32.0mm
Bundle ∅ min. 15.4mm
Weight/Unit 0.0034kg
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +90 °C
Plenum Rating AH-2
Specifications
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E64139
UV-Stabilised (Yes/No) Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026545028
Packaging 1 - Height (m) 0.000003m
Packaging 1 - Length (m) 0.07m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.340001kg
Packaging 1 - Width (m) 0.01m
Packaging 3 - Height (m) 0.16986249999999998m
Packaging 3 - Length (m) 0.20954999999999998m
Packaging 3 - Qty 300
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0057
Packaging 3 - Weight (kg) 1.130003kg
Packaging 3 - Width (m) 0.15875m
Packaging 4 - Height (m) 1.334m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 58800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.281
Packaging 4 - Weight (kg) 242.48kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC002935
ETIM 8.0 Key EC002935
ETIM 9.0 Key EC002935
UNSPSC Key 39121702
