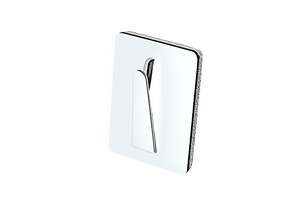

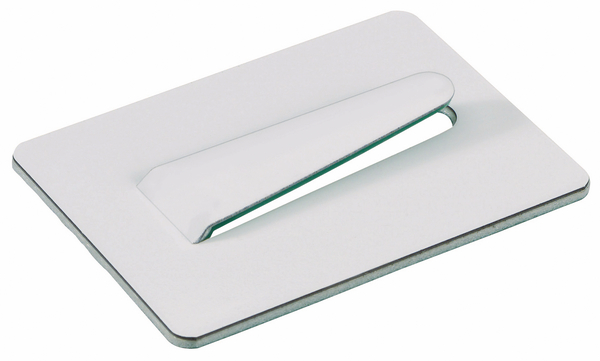

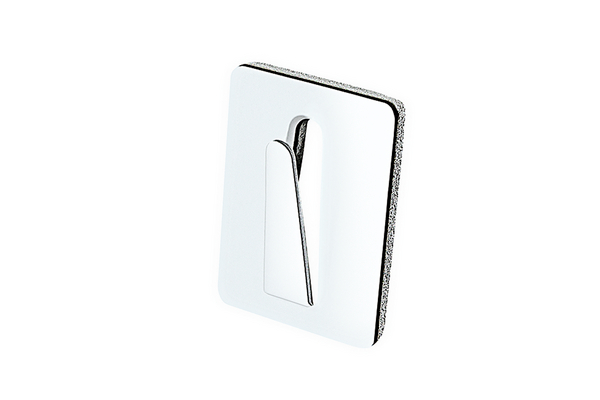

Cable clip for adhesive use/with pipe/tube holder, Dmax=4.0mm, white, 100pcs.
Art.-No. 151-00100 | SAC1-ST-WH Details

  • Bendable metal tongue for any shape or configuration of wires or cables
  • Cost effective with easy application on smooth, clean surfaces

Request your individual offer now

Application These clips are ideal for use in applications which are difficult to access, or for areas where a self adhesive solution is the only possible fixing method and holes would be unacceptable. Typical applications include domestic appliances and trailers.
Colour White (WH)
Fixation Method Pasting / Stick
Local order number SAC1.MW3P
Material Steel (ST)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION SAC1-ST-WH
Product Family SAC-Series
Product Group Mounts with flexible cable clip, self-adhesive
Short Description Self Adhesive Clip with flexible flat design 30x20 mm, Steel, white
Variant Closed
Bundle Diameter max (metric) 4.0mm
Bundle ∅ 4.0mm
Length (L) 30.0mm
Nominal ∅ 4mm
Weight/Unit 0.0021kg
Width (W) 20.0mm
Adhesive Acrylate with base of polyethylene foam
Adhesive Operating Temperature to +105 °C
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
Specifications
UV-Stabilised Yes
Country of Origin GB
Customs Number 83025000
GTIN-13 / EAN 5022660316364
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0039
Packaging 1 - Weight (kg) 0.210001kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.18m
Packaging 3 - Length (m) 0.3m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.013
Packaging 3 - Weight (kg) 2.6kg
Packaging 3 - Width (m) 0.24m
Packaging 4 - Height (m) 1.225m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 78000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.176
Packaging 4 - Weight (kg) 223.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
