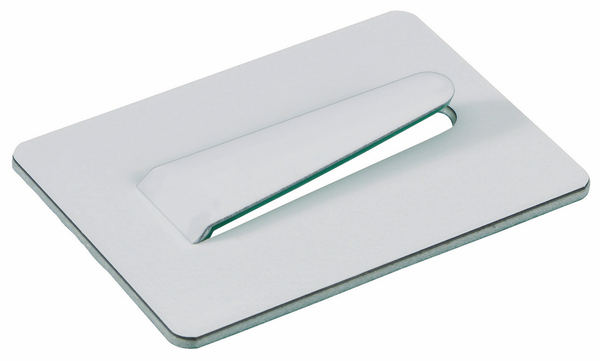

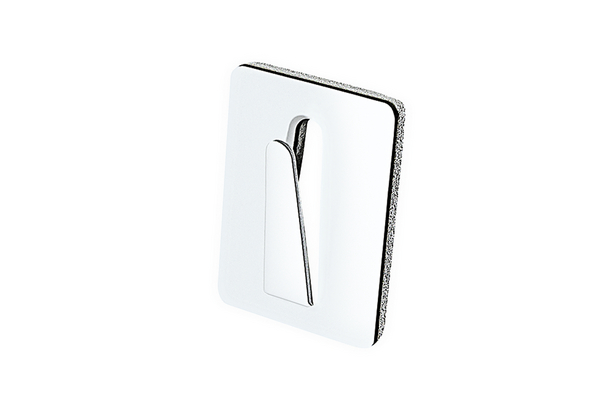

Cable clip for adhesive use/with pipe/tube holder, Dmax=16.0mm
Art.-No. 151-00400 | SAC4-ST-WH Details

  • Bendable metal tongue for any shape or configuration of wires or cables
  • Cost effective with easy application on smooth, clean surfaces

Request your individual offer now

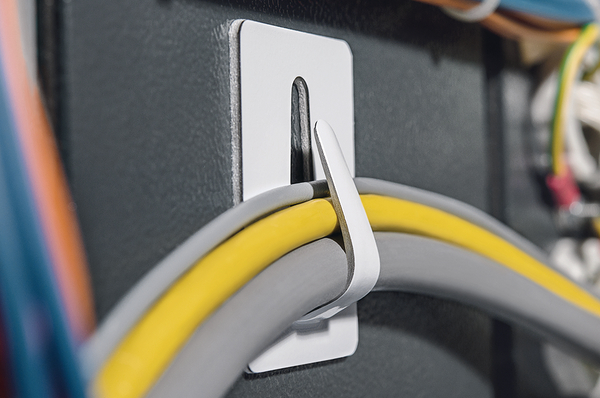

Application These clips are ideal for use in applications which are difficult to access, or for areas where a self adhesive solution is the only possible fixing method and holes would be unacceptable. Typical applications include domestic appliances and trailers.
Colour White (WH)
Fixation Method Pasting / Stick
Local order number SAC4.MW3P
Material Steel (ST)
PART DESCRIPTION SAC4-ST-WH
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family SAC-Series
Product Group Mounts with flexible cable clip, self-adhesive
Short Description Self Adhesive Clip 51x38 white
Type SAC4
Variant Closed
Bundle Diameter max (metric) 16.0mm
Bundle ∅ 16.0mm

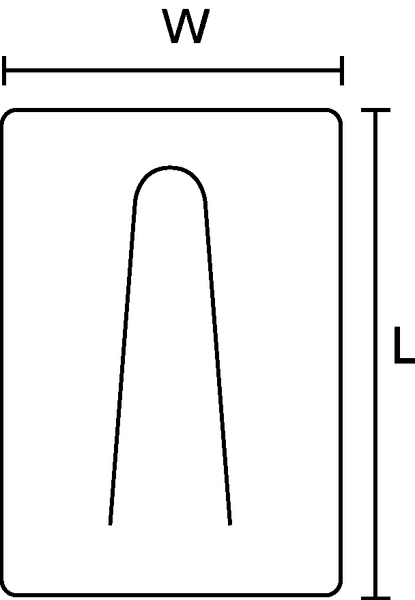

Length (L) 51.0mm
Weight/Unit 0.0061kg
Width (W) 38.0mm
Adhesive Acrylate with base of polyethylene foam
Adhesive Operating Temperature to +105 °C
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
ROHS compliant Yes
Specifications
UV-Stabilised Yes
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660316395
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.610001kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Weight (kg) 6.10001kg
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
