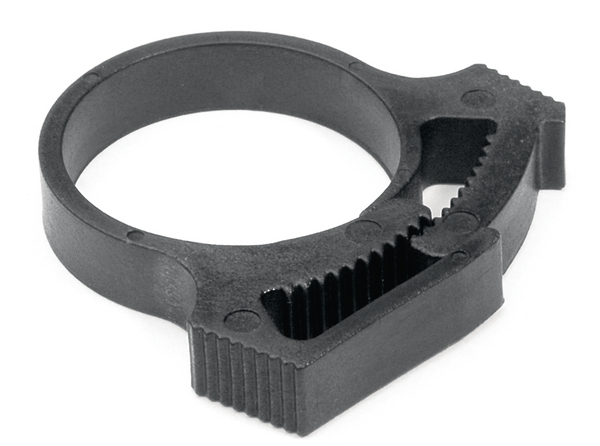

Plastic hose clamp, ∅15.6-18.3mm, black, 100pcs.
Art.-No. 190-00254 | SNP12A-PA66GF13-BK Details

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Application Tool ASNP2-22, ASNP24-70
Colour Black (BK)
Fixation Method Plug-in mounting
Material Polyamide 6.6, glass-fibre reinforced (PA66GF13)
PART DESCRIPTION SNP12A-PA66GF13-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Short Description Snapper Hose Clip for Tubes and Harnesses black
Type SNP12A
Variant Closed
Bundle Diameter max (metric) 18.3mm
Bundle ∅ 15.6-18.3mm
Bundle ∅ min. 15.6mm
Nominal ∅ 17mm
Nominal ∅ (imperial) 1.06"
Wall (WT) 1.8mm
Wall (WT) (imperial) .070"
Weight/Unit 0.0018kg
Width (W) max. 29.9mm
Width (W) min. 21.0mm
Width (W) min. 0.825"
Width (W2) 5.9mm
∅ D max. 18.31mm
∅ D max. (imperial) 0.721"
∅ D min. 15.62mm
∅ D min. (imperial) 0.615"
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026332628
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.178m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00131
Packaging 1 - Weight (kg) 0.180001kg
Packaging 1 - Width (m) 0.164m
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 7.82004kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 177.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
