22/02/2024

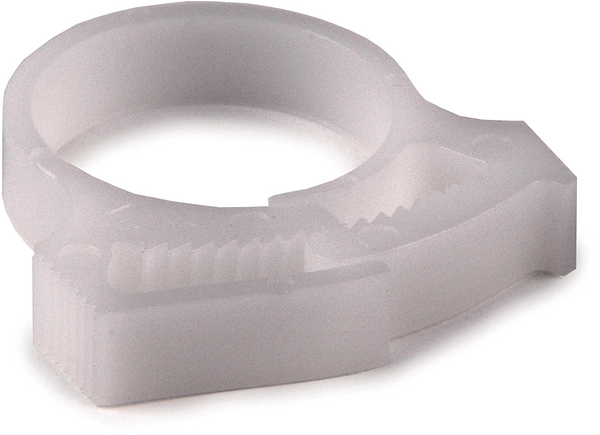

Plastic hose clamp, Ø19.3-21.5mm, natural, 500pcs.
Art.-No. 191-10169 | SNP16-POM-NA Details

  • Releasable and reusable plastic hose clamps
  • Self-locking
  • Releasable by giving a lateral movement to the 'head'
  • Installation by hand possible
  • Installation with processing tool for a secure tensioning
  • For higher operating temperatures: Glass Filled PA66
Show more

Request your individual offer now

Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
Application Tool ASNP2-22, ASNP24-70
Colour Natural (NA)
Fixation Method Plug-in mounting
Local order number SNP16.AN6P
Material Polyacetal (POM)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION SNP16-POM-NA
Product Family SNP-Series
Product Group Snapper hose clips for tubes and harnesses
Short Description Snapper Hose Clip for Tubes and Harnesses natural
Variant Closed
Bundle Diameter max (Metric) 21.5mm
Bundle ∅ 19.3-21.5mm
Bundle ∅ min. 19.3mm
Nominal ∅ 20mm
Wall (WT) 1.9mm
Weight/Unit 0.00028kg
Width (W) max. 24.0mm
Width (W) min. 19.0mm
Width (W2) 6.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
UV-Stabilised (Yes/No) No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660317767
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00144
Packaging 1 - Weight (kg) 0.140001kg
Packaging 1 - Width (m) 0.16m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 2.02001kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 90000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 57.36kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
