26/02/2024

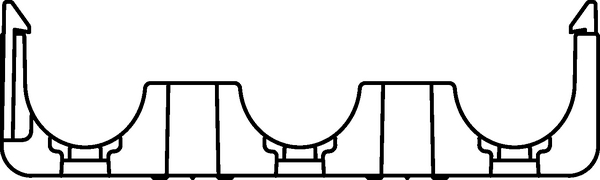

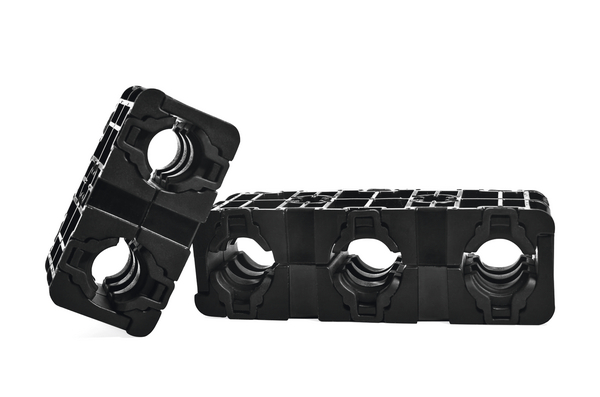

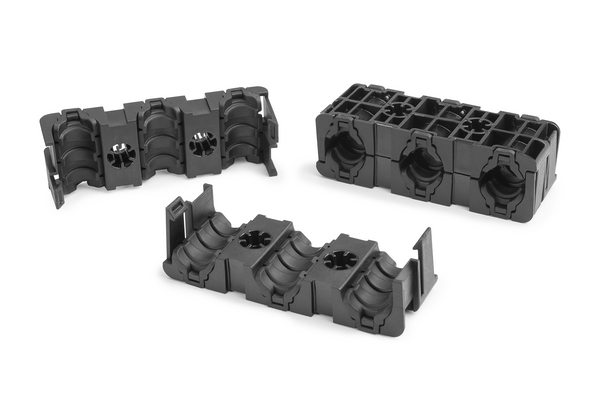

Cable clip for hole (round)/for stud, ØM6, Dmin=15.0mm, Dmax=18.0mm, black, 20pcs.
Art.-No. 151-03343 | THVC15-18-PA6GF30/TPV-BK Details

Request your individual offer now

Colour Black (BK)
Key product features vibration absorbing, sealed, for multiple routing
Material Polyamide 6, glass-fibre reinforced (PA6GF30), Thermoplastic Elastomer (TPV)
Pack Cont. 20pcs.
Package Content packed in Pack
PART DESCRIPTION THVC15-18-PA6GF30/TPV-BK
Product Family for multiparallel routing
Product Group Fixing elements for tubes and harnesses
Bundle Diameter max (Metric) 18.0mm
Bundle ∅ 15.0-18.0mm
Bundle ∅ min. 15.0mm
for Hole ∅ (FH) M6
Weight/Unit 0.032kg
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 4031026652887
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 20
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00156
Packaging 1 - Weight (kg) 0.640001kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 300
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 10.402015kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 6000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 229.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
