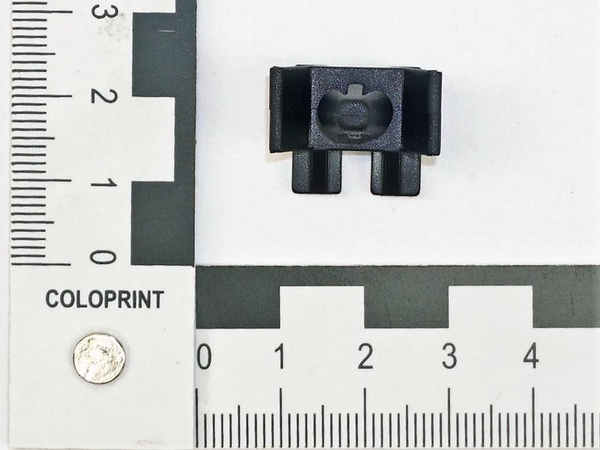

Connector Clips for round holes : Big Connector Clip
Article number: 151-01837
Features
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- Arrowhead locks into place for secure fixing at all times
Certifications & Approvals
More products in this product group
Connector Clips for round holes >| Colour | Black (BK) |
| Colour (short) | BK |
| Discontinued Globally | NO |
| Local Product Manager | Richard Rands (richard.rands@hellermanntyton.co.uk) United Kingdom, John Brodie (john.brodie@hellermanntyton.co.uk) United Kingdom |
| Manufacturer Type | Big Connector Clip-PA66HIRHS-BK (500) |
| Manufacturing PM | Torben Konetzny (Torben.Konetzny@HellermannTyton.de) Germany |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | Big Connector Clip-PA66HIRHS-BK |
| Product family | Connector Accessory |
| Product Group | Connector Clips for round holes |
| Product Subfamily | Connector Clip, round hole, arrow head |
| Project Number (GPN) | NT544-98 |
| Type | BIG_CONNECTOR CLIP_PA66HIRHS_BK_D1 |
| ECl@ss Key | 27140706 |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0.7 - 2.7 mm |
| Panel Thickness | 2.7mm |
| Panel Thickness | 0.7mm |
| Panel Thickness max. | 0.7 - 2.7mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Material | PA66HIRHS |
| Material Classification | Plastic (PL) |
| Material Surface | untreated |
| REACH compliant Regu. Art. 33 | YES |
| Specifications |
|
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| EAN / GTIN | 4031026573717 |
| Global Customs Number | 392690 |
| Label Design | Bundling_Securing |
| Label Type | HT Standard 75x100 |
| Order Unit | pcs. |
| Package dimensions calculated (LengthxWidthxHeight) | |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.528862kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 2 - Type | Carton |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 15000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 16.68586kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 180000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 221.28kg |
| Packaging 4 - Width (m) | 0.8m |
| Packaging Content SKU Unit | pcs. |
| PL0 Weight without Packaging | 0.00103kg |
| PL1 UNS | 030-00543 |
| PL1 Weight Packaging (Net) | 0.515kg |
| PL3 UNS | 031-00036 |
| PL3 Weight Packaging (Net) | 15.86586kg |
| PL4 UNS | 031-90193 |
| PL4 Weight Packaging (Net) | 200.28kg |
| Product Label Dimension 1 | L: / |
| Product Label Dimension 2 | FH: 6.3 - 6.7 mm / |
| Status Packaging / Logistics Data | 2020-11-27 |
| Weight | 0.515kg |
| Competitor Match Codes | Elematic, Panduit, Richco, Sapi Selco, Thomas&Betts, T&B |
| Customer Order Codes (merged) | HLR15101837 |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| shown on website | Great Britain, Automotive (English), HTData (English), Austria, Automotive (German), Germany, France, Spain, Italy, Netherlands, Sweden, Singapore (English), CEE (English) |
