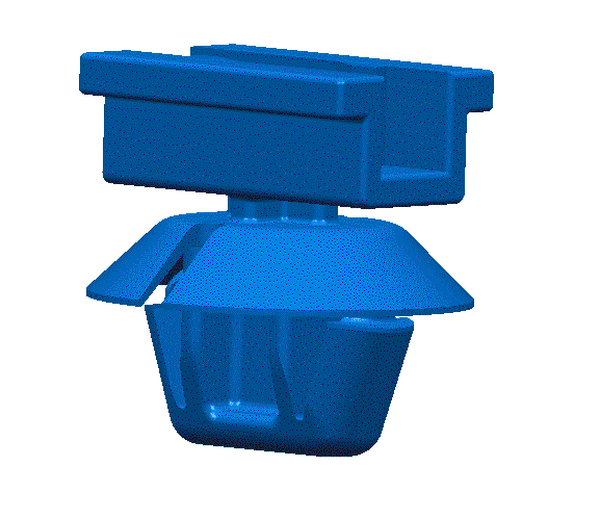

Connector Clips for oval holes : CCSFT7x12
Connector Clip for oval holes, grey, Article number: 151-00222
Features
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- Arrowhead locks into place for secure fixing at all times
Certifications & Approvals
More products in this product group
Connector Clips for oval holes >| Colour | Grey (GY) |
| Fixation Method | Arrowhead for oval holes |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | CCSFT7x12-PA66HIRHS-GY |
| Product Group | Connector Clips for oval holes |
| Short Description | Connector Clip for oval holes, grey |
| Type | CCSFT7x12.HIRHSE6P |
| for Hole ∅ (FH) | 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.8 - 2 mm |
| Height (H) | 17.6mm |
| Length (L) | 16.0mm |
| Panel Thickness max. | 0.8 - 2.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026263441 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.513862kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 12000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 13.152688kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 144000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 178.872kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.5kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
