** This product has now been discontinued, please view Category 6 products for alternatives **

Coloured Single Outlets
Art.-No. 852-05609 | AS08PBC5ESLD/GN Details

This product is not available anymore.
  • Shielded Jack
  • Fully modular PCB
  • Exceeds Category 5e performance standards
  • Patented slide label system and software
  • 568A or 568B wiring options
  • Also available in white
  • Rear cable tie point
  • Backward compatible with Category 5 and voice
Show more

Request your individual offer now

Colour Green (GN)
Description The Alpha Snap Coloured Shielded Category 5e Outlet forms part of the leading Category 5e product group within the HellermannTyton cabling system product range and has been designed to offer exceptional Category 5e performance and to meet the exacting standards of mission critical installations. Alpha Snap Coloured Shielded Outlets are only available in the proprietary HellermannTyton (Alpha Snap) mounting size and fit into all Alpha Snap faceplates. The Alpha Snap products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system.
Internet Customer Notice ** This product has now been discontinued, please view Category 6 products for alternatives **
Local order number AS08PBC5ESLD/GN
PART DESCRIPTION AS08PBC5ESLD/GN
Performance Category Category 5E (Class D)
Port count 1
Product Family Coloured Single Outlets
Product Group Alpha Snap FTP Category 5e

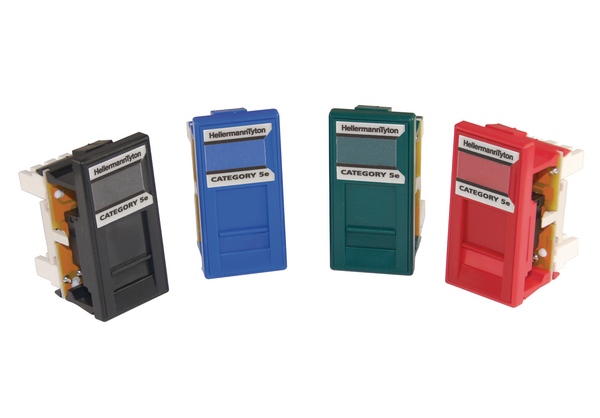

Technical Description The Alpha Snap Coloured Shielded Outlet is available in standard single (25mm x 50mm) format in a Black(BK), Blue(BL), Green(GN) and Red(RD). The Alpha Snap Coloured Shielded Category 5e Outlet is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The Alpha Snap Coloured Shielded Category 5e Outlet offers backward compatibility with Category 5 and voice products.

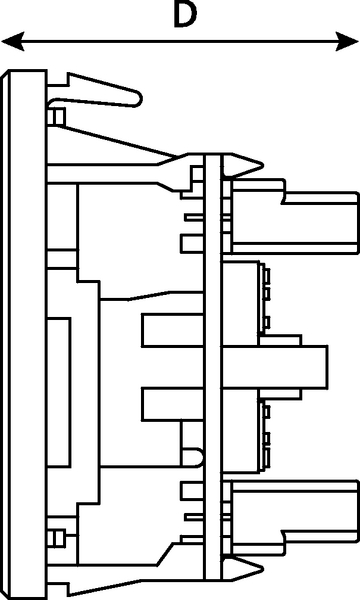

Depth (D) 34mm
Height (H) 50mm
Width (W) 25mm
Country of Origin GB

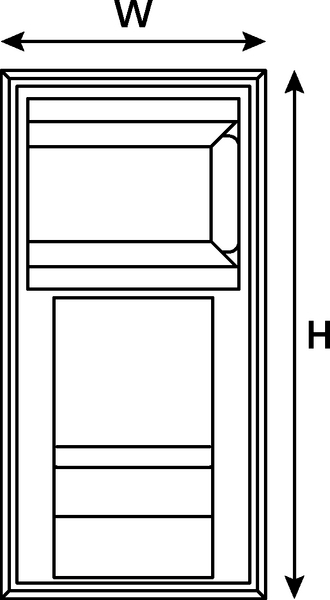

Dimensions W x H x D 25 mm x 50 mm x 34 mm
GTIN-13 / EAN 4031026459349
Packaging 1 - Weight (kg) 0.020kg
ETIM 8.0 Key EC001121
ETIM 9.0 Key EC001121
