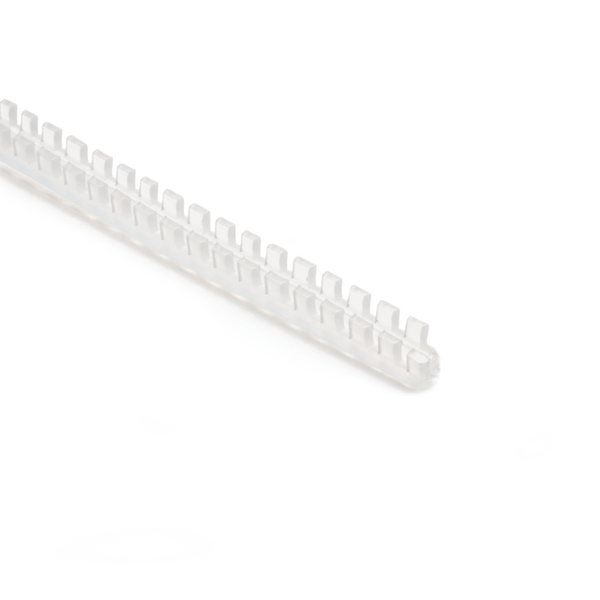

Edge protection 1.3-2.1 mm, Polyethylene, natural, 25 m reel
Art.-No. 251-10209 | G51PB-PE-NA Details

  • Very flexible
  • Easily and securely applied without adhesives
  • Provides effective, orderly-looking protection
  • Flexiform G51P made of polyethylene offers general purpose edge protection
  • Flexiform G51N made of PA6 offers very good abrasion resistance
  • Flexiform G51T made of PTFE offers excellent resistance to high temperatures and most chemicals
Show more

Request your individual offer now

Application Flexiform edge protection is used to protect cables and wires routed through sharp-edged cut-out sections.
Colour Natural (NA)
Local order number G51PB
Material Polyethylene (PE)
PART DESCRIPTION G51PB-PE-NA
Pack Cont. 25m
Package Content packed in Reel
Product Family Flexiform G51P PE grommet strip
Product Group Edge protection for cut-out sections
Short Description Edge protection 1.3-2.1 mm, Polyethylene, natural, 25 m reel
Type G51PB
Variant Open
Height (H) 4.3mm
Height (H2) 2.7mm
Panel Thickness max. 1.3 - 2.1mm
Weight/Unit 0.008572kg
Width (W) 4.6mm
Width (W2) 2.4mm
for Panel Thickness min - max 1.3 - 2.1 mm
for Panel Thickness min - max 0.1 - 0.1 "
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Nato number 9390-99-618-6255, 9390-12-167-9244
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660006210
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.0033
Packaging 1 - Weight (kg) 0.2143kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
Packaging 3 - Height (m) 0.075m
Packaging 3 - Length (m) 0.215m
Packaging 3 - Qty 25
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0032
Packaging 3 - Weight (kg) 0.7143kg
Packaging 3 - Width (m) 0.2m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 5000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 195.74kg
Packaging 4 - Width (m) 0.8m
Reel Length (imperial) 9.7ft
ETIM 7.0 Key EC001937
ETIM 8.0 Key EC001937
ETIM 9.0 Key EC001937
UNSPSC Key 39131603
