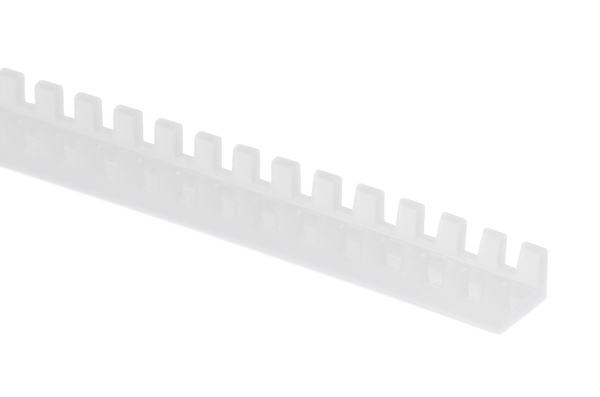

Edge protection 3.3-4.8 mm, Polyethylene, natural, 25 m reel
Art.-No. 251-10409 | G51PD-PE-NA Details

  • Very flexible
  • Easily and securely applied without adhesives
  • Provides effective, orderly-looking protection
  • Flexiform G51P made of polyethylene offers general purpose edge protection
  • Flexiform G51N made of PA6 offers very good abrasion resistance
  • Flexiform G51T made of PTFE offers excellent resistance to high temperatures and most chemicals
Show more

Request your individual offer now

Application Flexiform edge protection is used to protect cables and wires routed through sharp-edged cut-out sections.
Colour Natural (NA)
Local order number G51PD
Material Polyethylene (PE)
Pack Cont. 25m
Package Content packed in Reel
PART DESCRIPTION G51PD-PE-NA
Product Family Flexiform G51P PE grommet strip
Product Group Edge protection for cut-out sections
Short Description Edge protection 3.3-4.8 mm, Polyethylene, natural, 25 m reel
Variant Open
for Panel Thickness min - max 3.3 - 4.8 mm
for Panel Thickness min - max 0.1 - 0.2 "
Height (H) 6.2mm
Height (H2) 4.3mm
Panel Thickness max. 3.3 - 4.8mm
Weight/Unit 0.02292kg
Width (W) 8.4mm
Width (W2) 5.1mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Nato number 5325-99-625-3105, 9390-12-381-1400
Operating Temperature -30 °C to +80 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660006272
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.27m
Packaging 1 - Qty 25
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00583
Packaging 1 - Weight (kg) 0.573kg
Packaging 1 - Width (m) 0.27m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
Packaging 3 - Height (m) 0.095m
Packaging 3 - Length (m) 0.28m
Packaging 3 - Qty 25
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0073
Packaging 3 - Weight (kg) 1.073kg
Packaging 3 - Width (m) 0.275m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 138.72kg
Packaging 4 - Width (m) 0.8m
Reel Length (imperial) 9.7ft
ETIM 7.0 Key EC001937
ETIM 8.0 Key EC001937
ETIM 9.0 Key EC001937
UNSPSC Key 39131603
