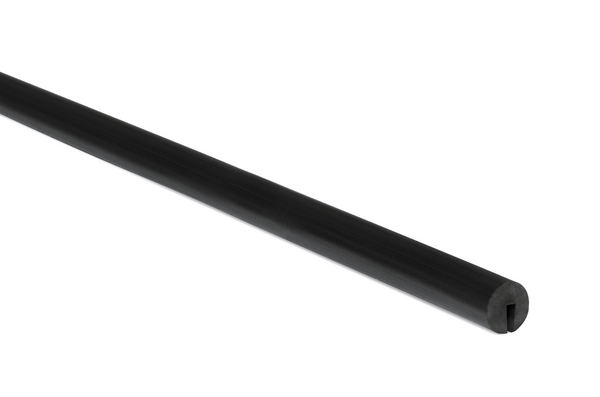

Edge protection black 75 metre, width: 1.2 mm
Art.-No. 800-00200 | PS1-PVC-BK Details

  • Very flexible
  • Easy to apply
  • Protects cables from chafing on bulkheads

Request your individual offer now

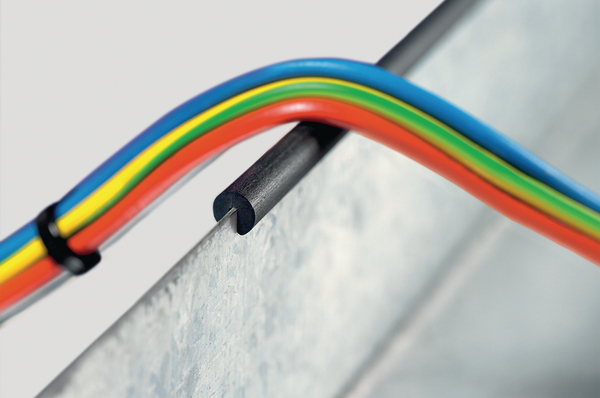

Application PVC Beading strip is used to protect cables routed through sharp-edged cutout sections. It can also be used to provide an attractive finish to panel edges.
Colour Black (BK)
Local order number PS1BK
Material Polyvinylchloride (PVC)
PART DESCRIPTION PS1-PVC-BK
Pack Cont. 75m
Package Content packed in Reel
Product Family EdgeGuard
Product Group Beading Edge Protection
Short Description Edge protection black 75 metre, width: 1.2 mm
Type PS1

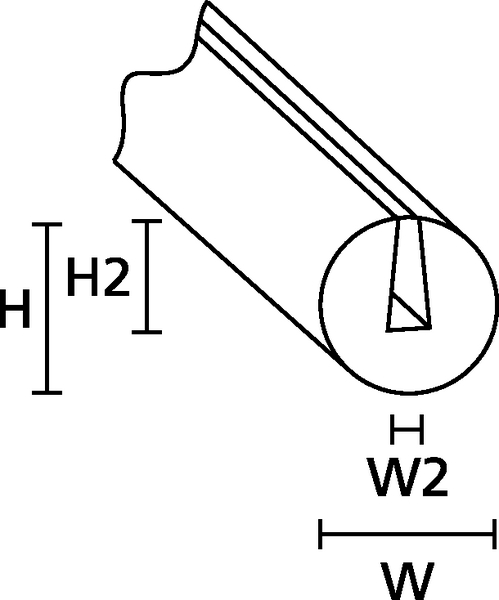

Height (H) 5.0mm
Height (H2) 3.15mm
Length (L) 75m
Panel Thickness max. 0.6mm
Weight/Unit 0.0272kg
Width (W) 1.2mm
Width (W2) 0.6mm
for Panel Thickness min - max 0.6 - 1.2 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -65 °C to +105 °C, intermittent +135 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39162000
GTIN-13 / EAN 4031026187211
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 75
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0045
Packaging 1 - Weight (kg) 2.325001kg
Packaging 1 - Width (m) 0.3m
Packaging 4 - Height (m) 0.964m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 7500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.925
Packaging 4 - Weight (kg) 285.38kg
Packaging 4 - Width (m) 0.8m
Reel Length 75m
ETIM 7.0 Key EC001937
ETIM 8.0 Key EC001937
ETIM 9.0 Key EC001937
