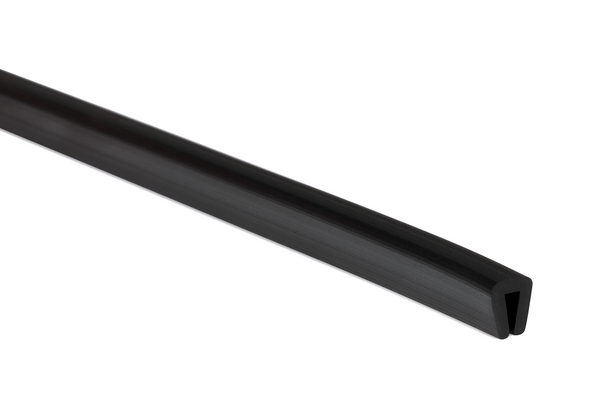

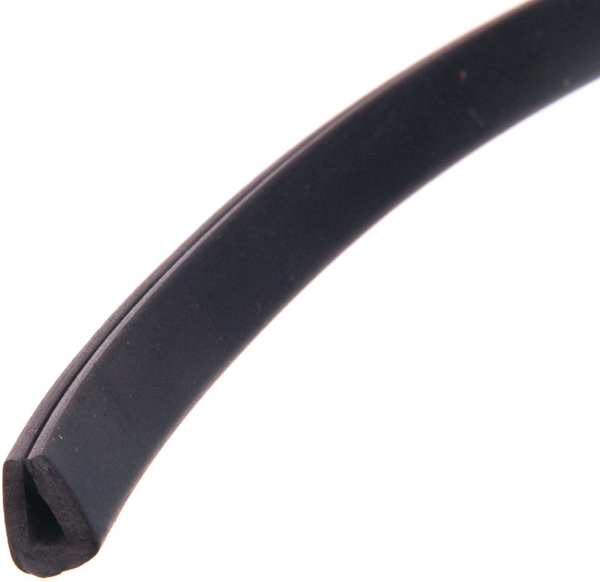

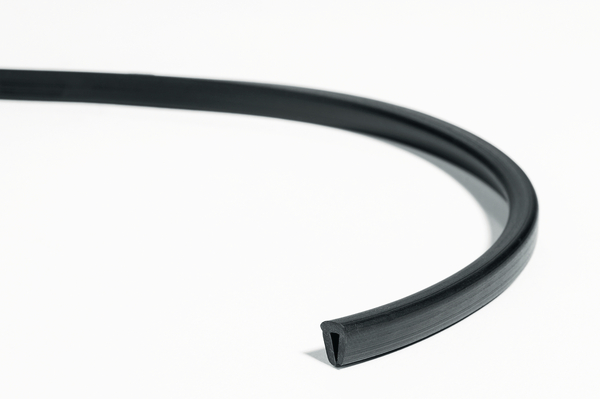

Edge protection black 75 metre, width: 5.0 mm
Art.-No. 800-00004 | SM1-PVC-BK Details

  • Made of flexible PVC compound
  • Easy to apply
  • Protects cables from chafing on bulkheads

Request your individual offer now

Application PVC Beading strip is used to protect cables routed through sharp-edged cutout sections. It can also be used to provide an attractive finish to panel edges.
Colour Black (BK)
Local order number SM1BK
Material Polyvinylchloride (PVC)
PART DESCRIPTION SM1-PVC-BK
Pack Cont. 75m
Package Content packed in Reel
Product Family EdgeGuard
Product Group Beading Edge Protection
Short Description Edge protection black 75 metre, width: 5.0 mm
Type SM1

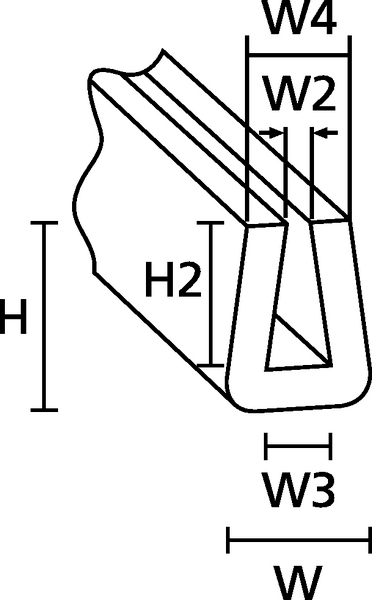

Height (H) 6.3mm
Height (H2) 4.9mm
Length (L) 75m
Panel Thickness max. 1.0 - 2.0mm
Weight/Unit 0.03565kg
Width (W) 5.0mm
Width (W2) 1.0mm
Width (W3) 1.8mm
Width (W4) 4.2mm
Width (W4) (imperial) 0.165"
for Panel Thickness min - max 1 - 2 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free No
Hazardous Goods No
Nato number 5325-99-769-8268
Operating Temperature -65 °C to +105 °C, intermittent +135 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 39162000
GTIN-13 / EAN 4031026272191
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 75
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0112
Packaging 1 - Weight (kg) 2.68675kg
Packaging 1 - Width (m) 0.4m
Reel Length 75m
Reel Length (imperial) 246.1ft
ETIM 7.0 Key EC001937
ETIM 8.0 Key EC001937
ETIM 9.0 Key EC001937
UNSPSC Key 39131603
