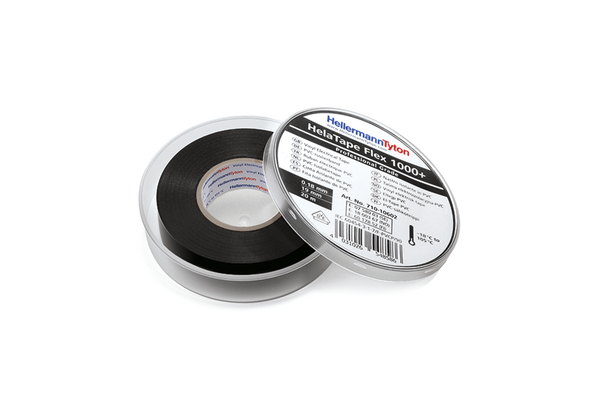

Vinyl Electrical Tapes – Premium Vinyl Electrical Tape : HTAPE-FLEX1000+ 19x6
PVC Electrical Insulation Tape 0.18mm thick / 19mm x 6m blackArticle number: 710-10600
Features
- All-weather, highly flexible, professional grade, self-adhesive vinyl electrical tape
- Excellent performance and durability over wide temperature range from -18°C to +105°C according to CSA C22.2
- VDE approved according to IEC 60454-3-1-7/F-PVCP/90
- Used for insulation, protection, fixing, maintenance, colour coding and more
- Pressure sensitive high quality rubber based adhesive
- Performs continuously at low temperature environment
- Excellent resistance to abrasion, moisture, chemicals, corrosion and UV exposure
- Primary electrical insulation for all wire and cable splices up to 1 kV
- Protective jacketing for low, medium and high voltage splices and repairs
- Flame retardant according to UL 510 Standard
- For indoor and outdoor applications
- Size 19 mm x 20 m is single packed in a plastic can, only 710-10601 comes in a pack of 10 pcs
Certifications & Approvals
Application
Primary electrical insulation for all wire and cable splices up to 1 kV.
Protective jacketing for low, high, and medium voltage splices.
Harnessing of wires and cables.
Used for indoor and outdoor applications.
More products in this product group
Vinyl Electrical Tapes – Premium Vinyl Electrical Tape >| Colour | Black (BK) |
| Pack Cont. | 10Reel |
| Package Quantity per | Reel |
| PART DESCRIPTION | HTAPE-FLEX1000+ 19x6-PVC-BK |
| Product Family | HelaTape Flex 1000+ |
| Product Group | Vinyl Electrical Tapes – Premium Vinyl Electrical Tape |
| Short Description | PVC Electrical Insulation Tape 0.18mm thick / 19mm x 6m black |
| Length (L) | 6m |
| Thickness (T) | 0.18mm |
| Width (W) | 19mm |
| Adhesion to Backing | 2.7N/10 mm |
| Adhesion to Steel | 3.0N/10 mm |
| Breaking Strength | 35N/10 mm |
| Dielectric Strength | 45 kV/mm |
| Elongation at break | 300 % |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Insulating (Yes/No) | Yes |
| Material | Polyvinylchloride (PVC) |
| Operating Temperature - °C | -18 °C to +105 °C |
| Self extinguishing (Yes/No) | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | IEC 60454-3-1-7/F-PVCP/90, UL 510 |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 35N/mm² |
| UL OCD link | Link |
| UL-File Number | E490183 |
| UV-Resistant (Yes/No) | Yes |
|
|
|
| GTIN-13 / EAN | 4031026548562 |
| Packaging 1 - Height (m) | 0.019m |
| Packaging 1 - Length (m) | 0.055m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.00006m³ |
| Packaging 1 - Weight (kg) | 0.03027kg |
| Packaging 1 - Width (m) | 0.055m |
| Packaging 2 - Height (m) | 0.195m |
| Packaging 2 - Length (m) | 0.055m |
| Packaging 2 - Qty | 10 |
| Packaging 2 - Type | Pack |
| Packaging 2 - Volume (m³) | 0.0006m³ |
| Packaging 2 - Weight (kg) | 0.3027kg |
| Packaging 2 - Width (m) | 0.055m |
| Packaging 3 - Height (m) | 0.2m |
| Packaging 3 - Length (m) | 0.35m |
| Packaging 3 - Qty | 180 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0123m³ |
| Packaging 3 - Weight (kg) | 5.949kg |
| Packaging 3 - Width (m) | 0.175m |
| Packaging 4 - Height (m) | 1.145m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 10800 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.099m³ |
| Packaging 4 - Weight (kg) | 377.916kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 6m |
| Storage Temperature | +23 °C |
| ETIM 6.0 | EC000128 |
| ETIM 7.0 Key | EC000128 |
