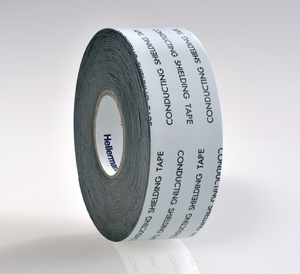

Self-amalgamating ethylene propylene rubber semi-conducting tape 19 mm x 4.6 m black
Art.-No. 711-10000 | HTAPE-SHIELD310-EPR-BK Details

  • Self-amalgamating conducting tape made from ethylene propylene rubber
  • Provides good conducting properties
  • Prevents partial discharges
  • Moisture and UV-resistant and easy to apply
  • Guidance and/or finishing of the semiconductive layer in case of repairs and connections of medium to high voltage cables.
Show more

Request your individual offer now

Colour Black (BK)
Material Ethylene Propylene Rubber (EPR)
PART DESCRIPTION HTAPE-SHIELD310-EPR-BK
Pack Cont. 1Reel
Package Content packed in Reel
Product Family HelaTape Shield 310
Product Group Conductive Tapes – Electrical Semi-Conducting Tape
Short Description Self-amalgamating ethylene propylene rubber semi-conducting tape 19 mm x 4.6 m black
Type HTAPE-SHIELD310
Length (L) 4.6m
Thickness (T) 0.76mm
Weight/Unit 0.099833kg
Width (W) 19mm
Adhesion to Backing 2N/10 mm
Adhesion to Steel 2.2N/10 mm
Breaking Strength 2N/10 mm
ELV compliant Dir. Art. 4 (2) YES
Elongation at break 600 %
Halogen-free Yes
Hazardous Goods No
Insulating (Yes/No) No
Intermittent Operating Temperature +130°C
Operating Temperature -40 °C to +90 °C
ROHS compliant Yes
Self extinguishing Yes
Shelf Life 5 years
Specifications
Suitable for high voltage (Yes/No) Yes
Tensile Strength 2.0MPa
UV-Stabilised Yes
Volume Resistance 870 Ω cm
Water Absorption 0.02%
Country of Origin CN
Customs Number 39191012
GTIN-13 / EAN 4031026548760
Packaging 1 - Height (m) 0.019m
Packaging 1 - Length (m) 0.085m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00014
Packaging 1 - Weight (kg) 0.1kg
Packaging 1 - Width (m) 0.085m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.36m
Packaging 3 - Qty 80
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0143
Packaging 3 - Weight (kg) 8.487kg
Packaging 3 - Width (m) 0.185m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 4800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 530.198kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +23 °C
Storage conditions 65% relative humidity.
ETIM 7.0 Key EC000128
ETIM 8.0 Key EC000128
ETIM 9.0 Key EC000128
