Conductive Tapes – Electrical Semi-Conducting Tape : HTAPE-SHIELD310

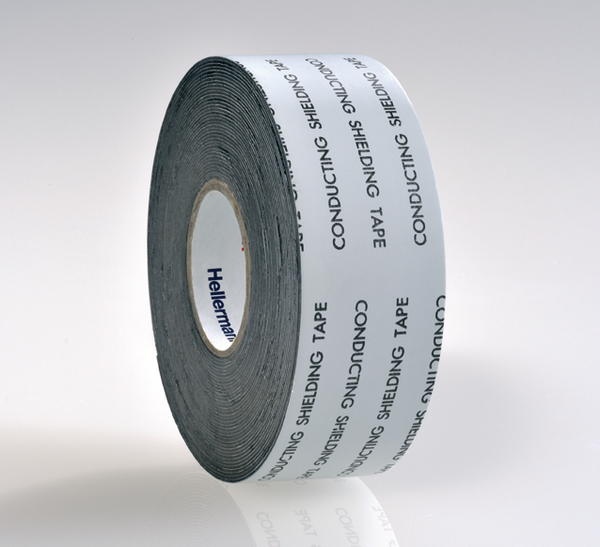

Self-amalgamating, ethylene propylene rubber semi-conducting tape 38 mm x 9.1 m blackArticle number: 711-10001
Features
- Self-amalgamating conducting tape made from ethylene propylene rubber
- Provides good conducting properties
- Prevents partial discharges
- Moisture and UV-resistant and easy to apply
- Guidance and/or finishing of the semiconductive layer in case of repairs and connections of medium to high voltage cables.
Certifications & Approvals
More products in this product group
Conductive Tapes – Electrical Semi-Conducting Tape >| Colour | Black (BK) |
| Pack Cont. | 1Reel |
| Package Quantity per | Reel |
| PART DESCRIPTION | HTAPE-SHIELD310-EPR-BK |
| Product Family | HelaTape Shield 310 |
| Product Group | Conductive Tapes – Electrical Semi-Conducting Tape |
| Short Description | Self-amalgamating, ethylene propylene rubber semi-conducting tape 38 mm x 9.1 m black |
| Length (L) | 9.1m |
| Thickness (T) | 0.76mm |
| Width (W) | 38mm |
| Adhesion to Backing | 2N/10 mm |
| Adhesion to Steel | 2.2N/10 mm |
| Breaking Strength | 4N/10 mm |
| Elongation at break | 500 % |
| ELV compliant Dir. Art. 4 (2) | YES |
| Halogenfree | Yes |
| Hazardous good | No |
| Insulating (Yes/No) | No |
| Intermittent Operating Temperature | +130°C |
| Material | Ethylene Propylene Rubber (EPR) |
| Operating Temperature - °C | -40 °C to +90 °C |
| Self extinguishing (Yes/No) | Yes |
| Specifications |
|
| Suitable for high voltage (Yes/No) | Yes |
| Tensile Strength | 225N/mm² |
| UV-Resistant (Yes/No) | Yes |
| Volume Resistance | 870 Ω cm |
| Water Absorption | 0.02% |
|
|
|
| GTIN-13 / EAN | 4031026548777 |
| Packaging 1 - Height (m) | 0.038m |
| Packaging 1 - Length (m) | 0.11m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.00046m³ |
| Packaging 1 - Weight (kg) | 0.369553kg |
| Packaging 1 - Width (m) | 0.11m |
| Packaging 3 - Height (m) | 0.172m |
| Packaging 3 - Length (m) | 0.36m |
| Packaging 3 - Qty | 24 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0158m³ |
| Packaging 3 - Weight (kg) | 9.369kg |
| Packaging 3 - Width (m) | 0.255m |
| Packaging 4 - Height (m) | 1.005m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1080 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.965m³ |
| Packaging 4 - Weight (kg) | 442.617kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| ETIM 6.0 | EC000128 |
| ETIM 7.0 Key | EC000128 |
