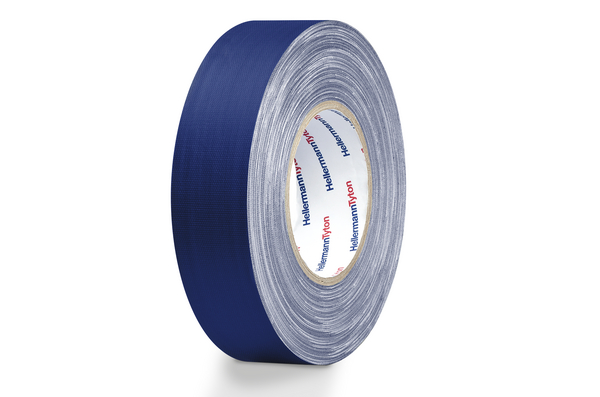

Technical Tapes – Cloth Tape HTAPE-TEX-15x25

HelaTape Tex, Article number: 712-00050


  • High quality PE-coated cloth tape with good weather resistance
  • Total thickness of 0.31 mm for high tensile strength
  • Highly tear-resistant in longitudinal direction
  • Easy to tear-off by hand in transverse direction
  • Matt surface finish for use in stage constructions and for exhibitions to avoid light reflections
  • Useful for various applications like bundling, fixing, identification, marking and protection
  • HelaTape Tex can be removed without residues due to high quality rubber based adhesive

Certifications & Approvals


HellermannTyton offers a comprehensive range of Vinyl, Rubber and Cloth Tapes for bundling, insulating, fixing, sealing and marking applications around all kinds of electrical applications. Vinyl electrical tapes are designed for low voltage applications and available in different dimensions and colours. Rubber tapes are suitable for sealing and insulating cables and splices in low, medium and high voltage applications. HelaTape Cloth tapes are extremely strong and ideal for identification, fixing, bundling and repair purposes. HelaTape Protect is used to build professional cable and wiring harnesses.

HelaTape Tex is suitable for following markets and industries

Colour Blue (BU)
Description Short (BMEcat) (max. 150 characters) Textile Tape 15mm x 25m blue
Pack Cont. 1m
Package Quantity per Reel
Product Family HelaTape Tex
Product Group Technical Tapes – Cloth Tape
Length (L) 25m
Thickness (T) 0.31mm
Width (W) 15mm
Adhesion to Backing 3N/10 mm
Breaking Strength 64N/10 mm
Elongation at break 10 %
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
Insulating (Yes/No) No
Material Cotton (CO)
Operating Temperature - °C -30 °C to +80 °C
Self extinguishing (Yes/No) ETIM No
Suitable for high voltage (Yes/No) No
UV-Resistant (Yes/No) No
EAN / GTIN 4031026449951
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.125m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00023
Packaging 1 - Weight (kg) 0.112kg
Packaging 1 - Width (m) 0.125m
Packaging 3 - Height (m) 0.305m
Packaging 3 - Length (m) 0.26m
Packaging 3 - Qty 72
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0206
Packaging 3 - Weight (kg) 8.564kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2592
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 329.304kg
Packaging 4 - Width (m) 0.8m
Weight 0.112kg
ETIM 6.0 EC000128
ETIM 7.0 Key EC000128
