BFP - Building Flexibility Point Wall Box
Art.-No. 857-00009
| BFP1019C
|
Copied
- Maximum 96 fibre splice capacity
- Cable entry points at the top and bottom
- Lockable side hinged door
- Cable strength member anchor points
- Fibre storage area
Request your individual offer now
Request quote
More products in this product group:
| Colour | Grey (GY) |
| Content |
Building Flexibility Point Box Hellafos Trays (4) Transportation Tubing Tubefix - Tube to tray securing blocks Marker Kit Red Marker 1 - 48 Green Marker 1 - 48 Isopropyl Alcohol Wipes |
| Description | BFP - Wall Box |
| Local order number | BFP1019C |
| PART DESCRIPTION | BFP1019C |
| Package Content packed in | Bag |
| Product Family | Fibre Optic Internal Enclosure |
| Product Group | BFP - Building Flexibility Point Wall Box |
| Qty Trays | 4 |
| Technical Description |

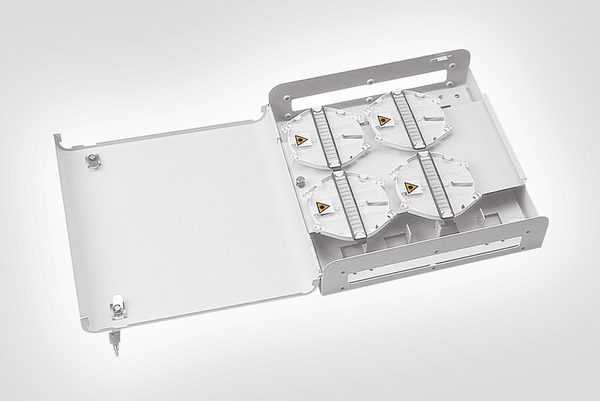

The Building Flexibility Point (BFP) box is manufactured from epoxy coated steel and is designed for the protection of fibre optic cable splices within internal environments. It contains 4 Hellafos splice trays which are mounted on the single hinged splice tray mounting plate. Each of the trays can achieve a maximum 24 splice capacity when using 3A heatshrink splices. The box is fitted with a lockable single hinged door, a back plate with cable strength member anchor points and the fibre storage area is positioned behind the hinged splice tray mounting plate. A range of glands and bulkhead plates for cable entry are detailed below and must be ordered separately. |
| Type | BFP1019C |
| Type of Tray | Hellafos |
