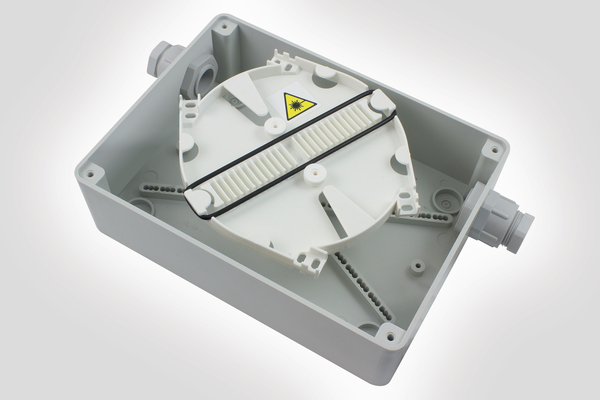

CPU - Customer Premise Unit : CPU3865

Fibre Optic Internal Enclosure, Article number: 857-00352

Features

  • Maximum splice capacity of 24 fibres
  • 2 or 4 cable entry point options available
  • 2 piece box allows easy access to fibre
  • Cable loop storage capacity
  • IP56 rated
Cable ∅ max 14mm
Cable ∅ min 4mm
Colour Grey (GY)
Content Customer Premise Unit Box Hellafos Tray Cable Loop Storage Spool Cable Glands Transport Tubing Markers Green 1 - 12 Red 1 - 12
Package Quantity per kit
PART DESCRIPTION CPU3865
Product Family Fibre Optic Internal Enclosure
Product Group CPU - Customer Premise Unit
Technical Description The Customer Premise Unit has been designed for the organisation and protection of fibre optic splices in internal and sheltered environments. The 2 piece polystyrene box is available with either 2 or 4 cable entry points with a total of 4 entry points and cable gland size options to choose from. Each box is fitted with a single Hellafos splice tray which is mounted on a cable loop storage spool and can achieve a maximum 24 fibre splice capacity when using a 3A heatsrink splice protector.
Type CPU3865
Type of Gland PG16, PG9

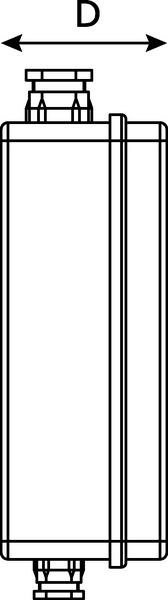

Depth (D) 80mm

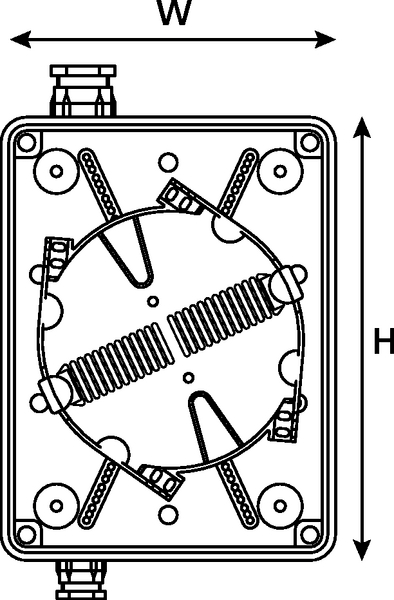

Height (H) 195mm

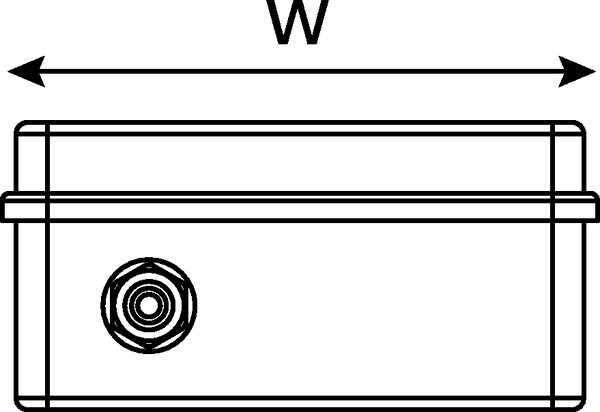

Width (W) 145mm
EAN / GTIN 5022660984761
ETIM 6.0 EC002358
ETIM 7.0 Key EC002358
