Customer Connection Point : CCPA-M11XXX/BK-0

Fibre Optic External Enclosure, Article number: 857-01106

Features

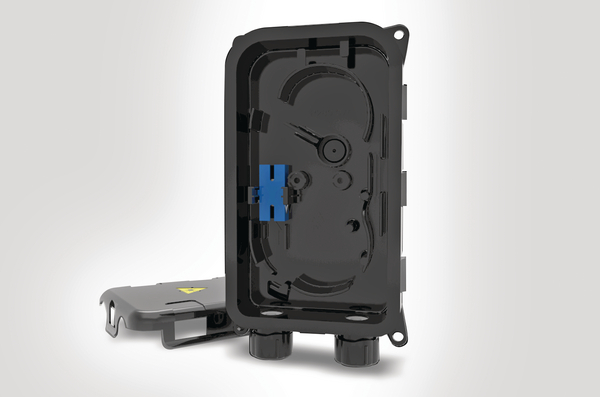

  • Maximum capacity: 2 x SC Simplex or 1 x LC Duplex Adaptor
  • Fibre management for 2 x 3A or 2 x ANT splices
  • Integral positive fibre management and fibre storage capacity

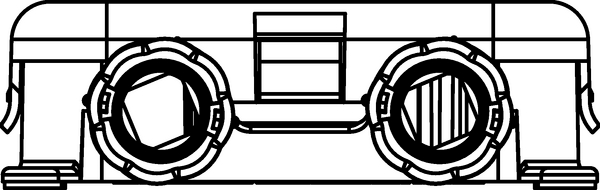

  • Separate inbound/outbound access points
  • Fully detachable snap on lid
  • IP68/IK08 Rated
  • White option available

Application

The Customer Connection Point closure has been designed to be used as an external building entry point. The closure can be wall/facade mounted or put in to a buried chamber (located at the property boundary or just outside the point of access) providing an external building entry point and network test point.

Cable ∅ max 6.0mm
Cable ∅ min 4.0mm
Colour Black (BK)
Content Cable Entry Kit 4.0 - 6.0mm Breather Membrane Laser Label
Description Unloaded CCP.
Package Quantity per Box
PART DESCRIPTION CCPA-M11XXX/BK-0
Product Family Fibre Optic External Enclosure
Product Group Customer Connection Point

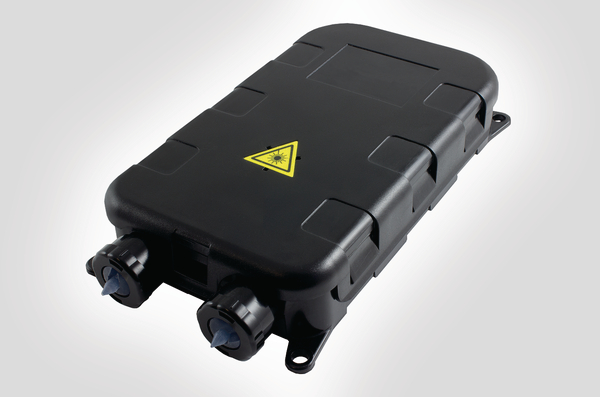

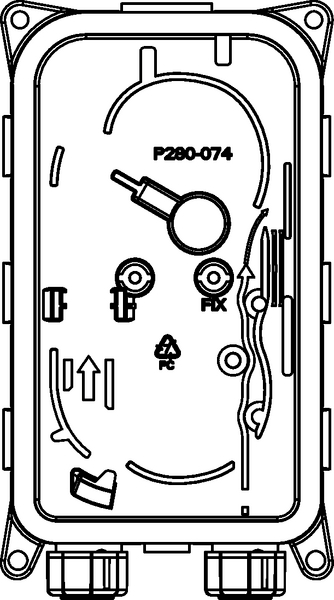

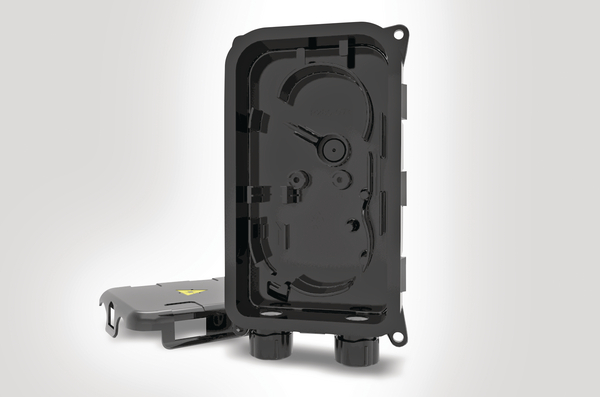

Technical Description The Customer Connection Point (CCP) supports 2 x SC Simplex or 1 x LC Duplex adaptors. The closure is manufactured from V0 and UV stable black poly carbonate and has a fully detachable snap on lid. The closure has 2 separate cable access points which are sealed with a silicon cable entry kit (cable diameter range 4.0mm - 6.0mm) to maintain the IP68 rating. A gortex breather membrane is fitted to the lid to prevent condensation forming in the base of the closure. The unit supports 2 x SC Simplex or 1 x LC Duplex adaptor and provides splice management for 2 x 3A or 2 x ANT splices. Internal fibre management features ensure that a 30mm minimum bend radius is maintained within the closure and provides fibre storage capacity for any excess fibre.
Variant Outdoor FTTx Enclosures

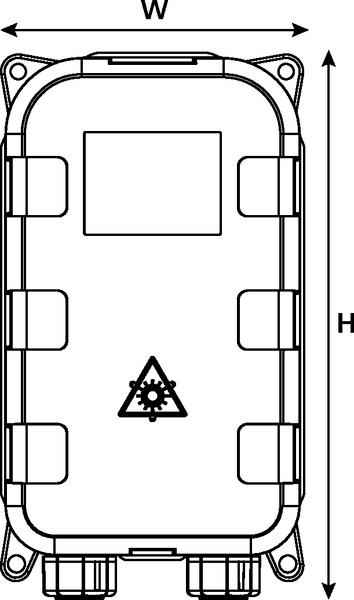

Depth (D) 28mm
Height (H) 160mm
Width (W) 89mm
Material Polycarbonate (PC)
EAN / GTIN 5022660146534
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 3 - Qty 1
Packaging 3 - Type Carton
ETIM 6.0 EC001124
ETIM 7.0 Key EC001124
