CWB in Grey with 1 x SC/APC SX Adaptor
Art.-No. 857-02884
| CWB-GY-1VX
|
Copied
- Maximum 4 Customer Connections
- 6 Entry/Exit Ports at the base max. 8mm
- 2 Entry/Exit Ports at the rear max. 6.4mm
- Accommodation for 2 LC Duplex/SC Simplex Adaptors
- Maximum 4 x 3A splices
- IP54
- Storage for excess fibre
- Tamperproof
Show more
Show less
Request quote
More products in this product group:
| Application | The Customer Wall Box (CWB) has been designed as a Building Entry Point (BEP) to provide a fibre termination and demarcation point external to the connected premise in a Fibre to the Home (FTTH) network. |
| Colour | Grey (GY) |
| Content |
CWB Enclosure - Grey Fibre Management Tray 1 x SC/APC SX Adaptor 2 x 3.0-8.0MM Entry/Exit Port Seals 2 x 6.4mm grommets Wall Mounting Kit Cable Ties Red |
| Material | Polycarbonate, UV-stabilised (PCUV) |
| PART DESCRIPTION | CWB-GY-1VX |
| Package Content | 48 |
| Package Content packed in | Box |
| Product Family | Fibre Optic External Enclosure |
| Product Group | CWB - Customer Wall Box |
| Short Description | CWB in Grey with 1 x SC/APC SX Adaptor |
| Technical Description |

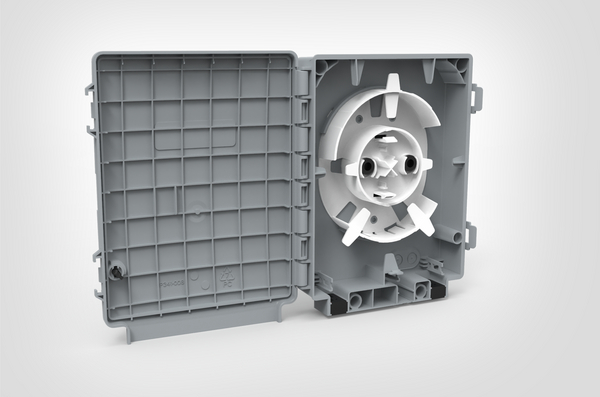

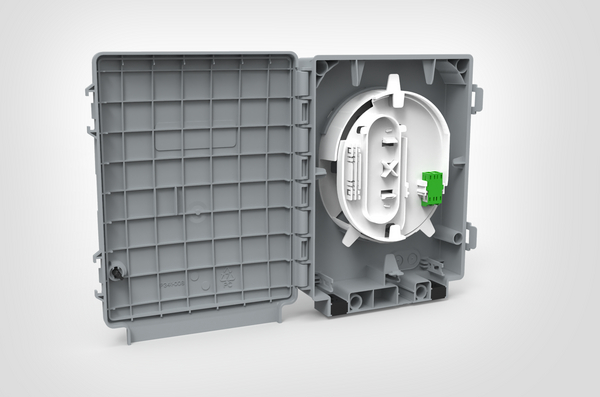

The CWB is an IP54/IK07 rated enclosure manufactured from UV stable polycarbonate. The enclosure is fitted with a tamper-proof lock and has provision in the lid for a moulded customer logo. The closure has a total of 8 entry points, 6 in the bottom and 2 in the rear, which will manage cable/ducts up to a maximum diameter of 8mm. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. A fibre storage module allows for the management and storage of up to 30m of a blowable fibre unit (nominal diameter 1.2mm) or 10m of aerial drop cable (nominal diameter 3mm). A dedicated customer drop tray houses a maximum of 2 x LC Duplex or SC Simplex adaptors (not provided) and has features to secure up to a maximum of 4 x 3A splices. Additional storage space at the rear of the enclosure allows for the management of up to 5m of customer drop cable (nominal diameter 5mm). |
| Type | CWB-GY-1VX |
