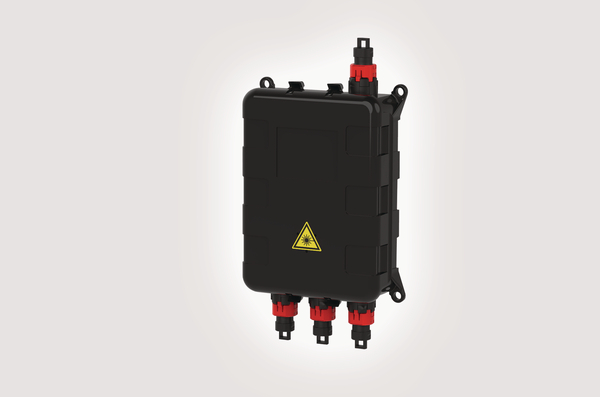

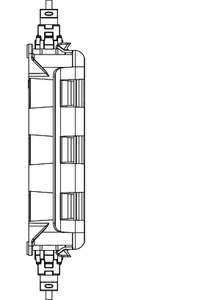

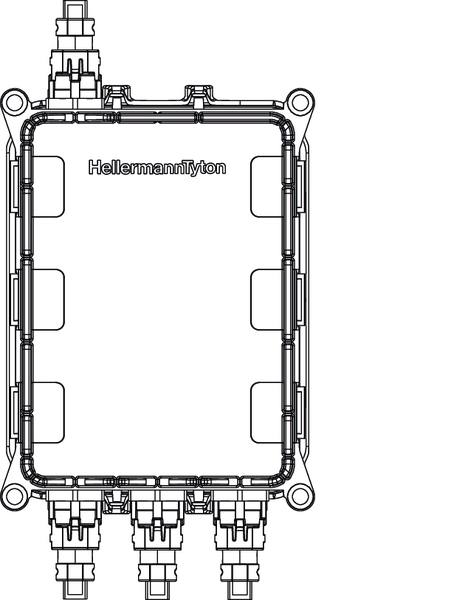

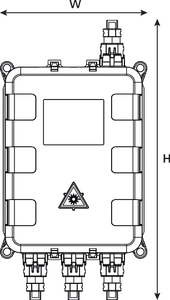

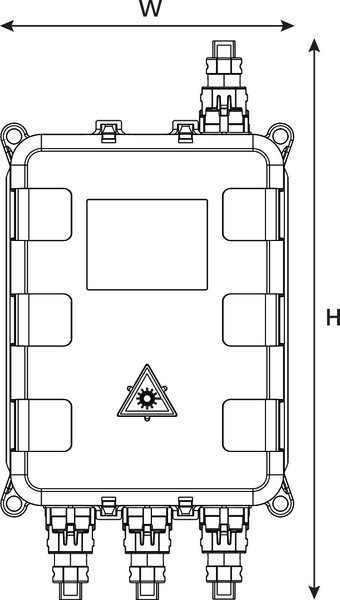

MCDN with 4 x IP9 ports
Art.-No. 857-02729
| MCDN-XE-X-SN
|
Copied

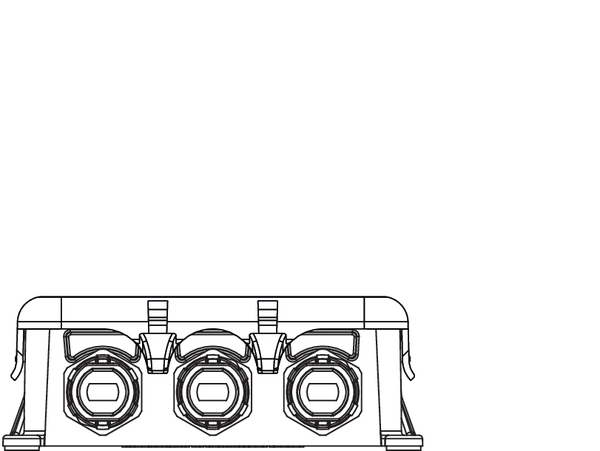

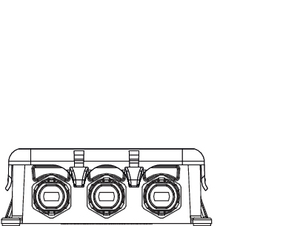

- 4 x IP9 SN Duplex Ports with tethered dust caps
- IP68 sealing on all ports

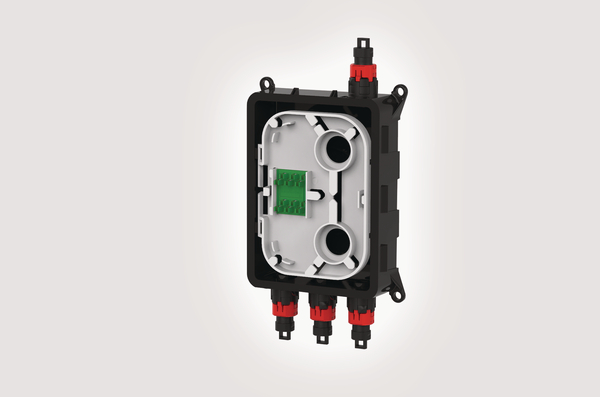

- Splice tray for maximum of 12 x 3A fibre splices
- Gortex breather to prevent moisture condensation
- Cable retaining clips are incorporated into the box
- Two slotted fixings for perfect horizontal alignment
- Enforces IEC 6079-2-50 B6_a2 (G.657.A2) fibre minimum bend radius of 7.5mm
- Manufactured from UV stable PC/ABS
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Content |
MCDN-XE (4 x IP9 Ports) 3A Splice Tray x 1 IP9 SN Adaptor x 4 |
| Material | Polycarbonate, UV-stabilised (PCUV) |
| PART DESCRIPTION | MCDN-XE-X-SN |
| Port count | 4 |
| Product Family | Fibre Optic External Enclosure |
| Product Group | MCDN - Micro Compact Distribution Node |
| Qty Trays | 1 |
| Short Description | MCDN with 4 x IP9 ports |

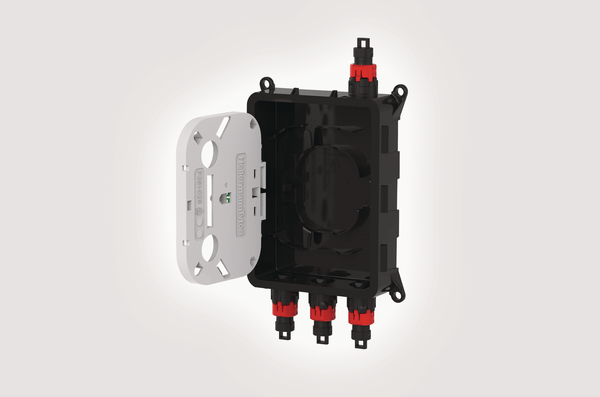

| Technical Description | The MDCN-XE is a compact hardened connector enclosure which offers IP68 environmental protection. The enclosure has four IP9 ports at the base of the unit. The IP9 ports are fitted with a SN duplex adaptor to allow for BiDi or duplex connections. The enclosure is supplied with a fibre splice tray which will manage a maximum of 12 x 3A 60mm splices for use where pre-connectorised fibre units cannot be deployed and the base has moulded retaining clips for improved fibre management. The enclosure is manufactured from UV stable PC/ABS and is supplied with a Gortex breather eliminating any internal moisture build up. |
| Type | MCDN-XE-X-SN |
