FDN 16 Port Tubed Closure : FDNTB-ABXAXXX

AB Length, Article number: 857-01033

Features

  • Maximum 432 fibre splice capacity when using SMF SE-A trays

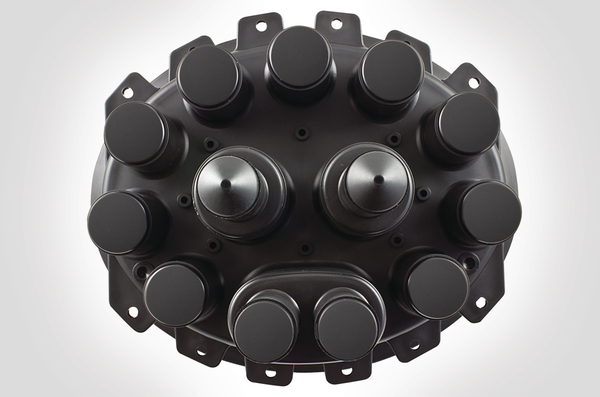

  • 15 round ports and 1 oval port
  • Moulded supports allow the cover to be removed whilst closure is in-situ
  • Fixing points for external cable management attachments
  • Accommodates Hellipse NZDF SE-A and SMF SE-A trays
  • Maximum 24 splices per tray without double stacking (SMF SE-A trays)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed through
Colour Black (BK)
Content FDN 16 Port Base AB-Length Cover (Dome) Quick Release Clamp Sealing ‘O’ Ring Tray Support Frame Anchor Fixing Kit (3) Tray Tool Hook and Loop Securing Strap Transportation Tubing Tubefix – Tube to Tray Securing Blocks Hook and Loop Management Ties Isopropyl Alcohol Wipes Desiccant Installation Guides Marker Kit Red Marker 1 – 25 Green Marker 1 – 25
Cover Type AB
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit
PART DESCRIPTION FDNTB-ABXAXXX
Port L, T, B, S
Port count 1, 2, 4, 9
Product Family AB Length
Product Group FDN 16 Port Tubed Closure

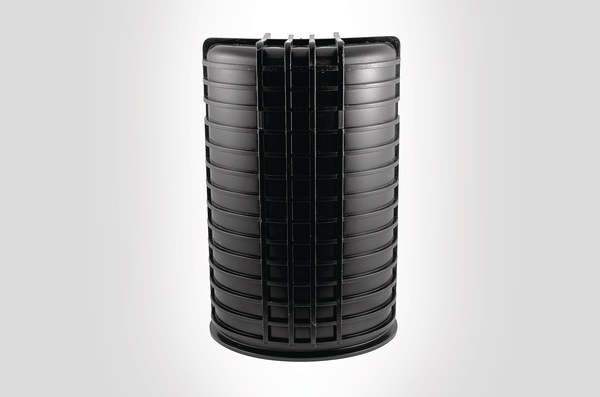

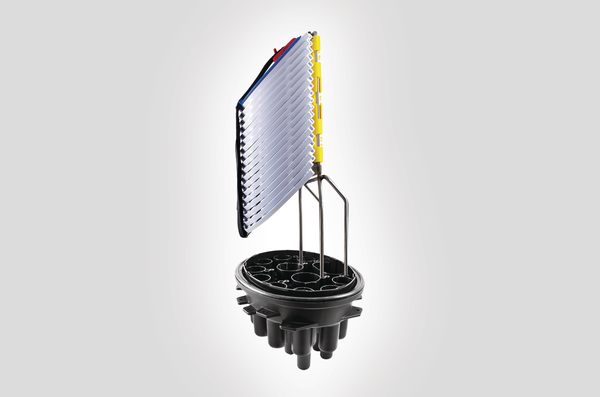

Technical Description The FDN 16 Port AB Length closure is supplied with a Polypropylene base. The base configuration of 15 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The moulded supports on the base allow the cover to be removed from the closure whilst it is still in-situ. Bosses moulded in to the closure base enable fixing of external cable management attachments. The mounting system is manufactured from Grade 304 stainless steel and can accommodate up to 18 Hellipse NZDF SE-A or SMF SE-A trays giving a maximum of 432 splices based on 24 fibres per tray (when using Hellipse SMF SE-A trays). The tube closure and the position of the mounting system allow for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system.
Type of Tray Not supplied

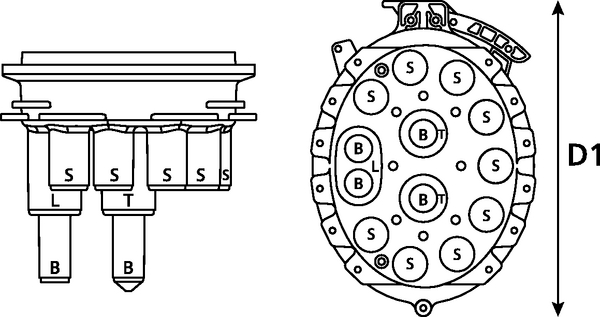

D1 312mm

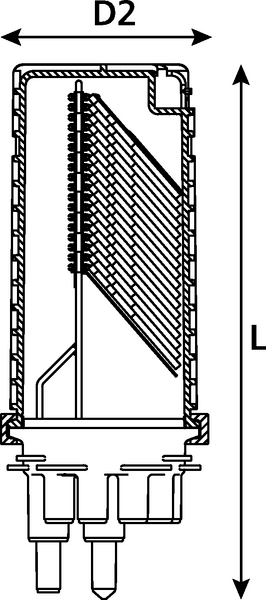

D2 222mm
Length 561mm
Length (L) 561mm
EAN / GTIN 5022660133473
ETIM 6.0 EC000762
ETIM 7.0 Key EC000762
