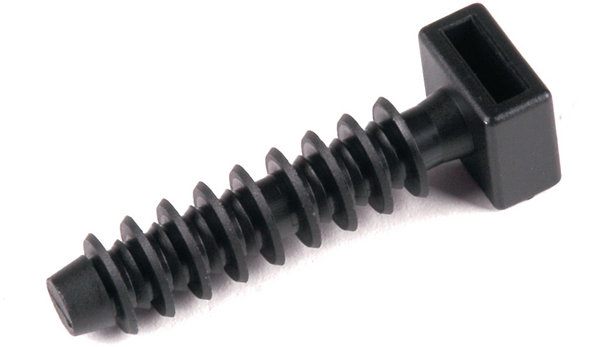

Fixing base : LOK01
Fixing base blackArticle number: 151-01277
Features
- LOK01 – LOK05 usable with any cable ties up to 9 mm wide
- Suitable for a wide range of materials, including concrete, brick, block and wood

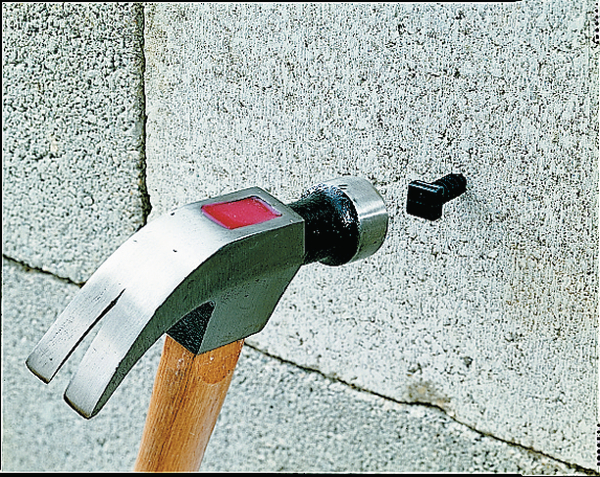

- Installed by knocking into 7 mm or 8 mm diameter hole
- LOK01B is designed for soft brickwork and 6 mm holes
- Elongated head of LOK05 for setting bundles at a distance from brickwork
Certifications & Approvals
Application

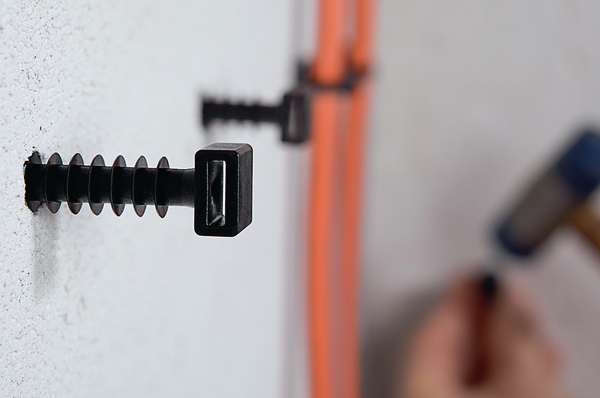

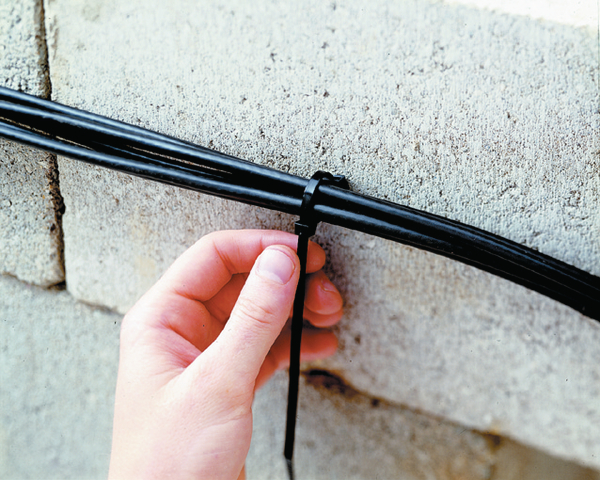

The LOK mounts, in conjunction with a cable tie, can be used either indoors or outdoors for a diverse range of applications from holding climbing plants, to securing cables running between buildings.
More products in this product group
Fixing base >| Colour | Black (BK) |
| Fixation Method | with Fir Tree (Mounts) |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | LOK01-PA11-BK |
| Product Family | LOK-Series |
| Product Group | Fixing base |
| Short Description | Fixing base black |
| Type | LOK01-N11-BK |
|
|
|

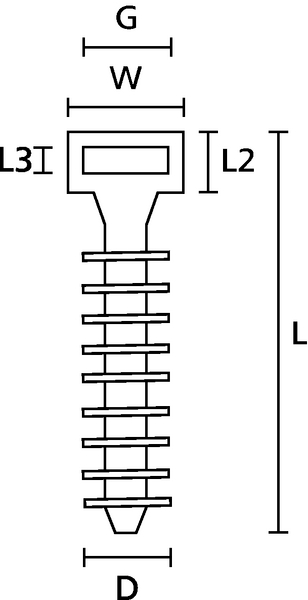

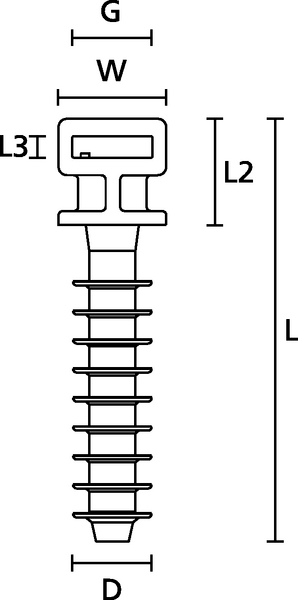

| Diameter (D) | 9.2mm |
| for Hole ∅ (FH) | 7.0 - 8.0 mm |
| Length (L) | 44.0mm |
| Length (L2) | 6.5mm |
| Length (L3) | 2.5mm |
| Strap Width max. (G) | 9.0mm |
| Width (W) | 12.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 11 (PA11) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026486680 |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 1.000001kg |
| Packaging 3 - Height (m) | 0.15m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.018m³ |
| Packaging 3 - Weight (kg) | 10.5kg |
| Packaging 3 - Width (m) | 0.3m |
| Packaging 4 - Height (m) | 1.195m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 56000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.147m³ |
| Packaging 4 - Weight (kg) | 609.0kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.0kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
