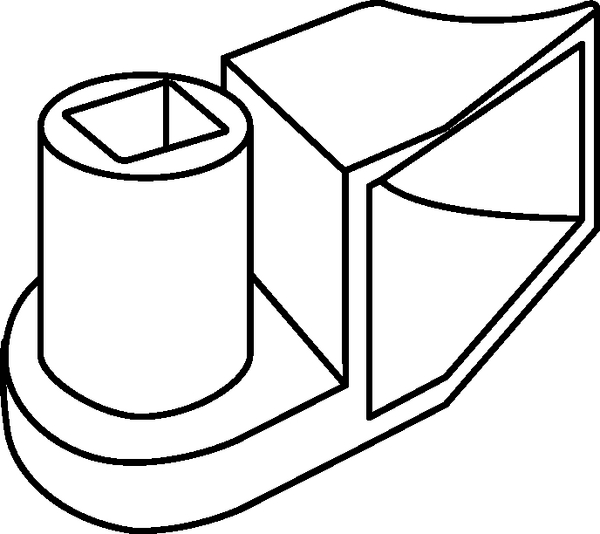

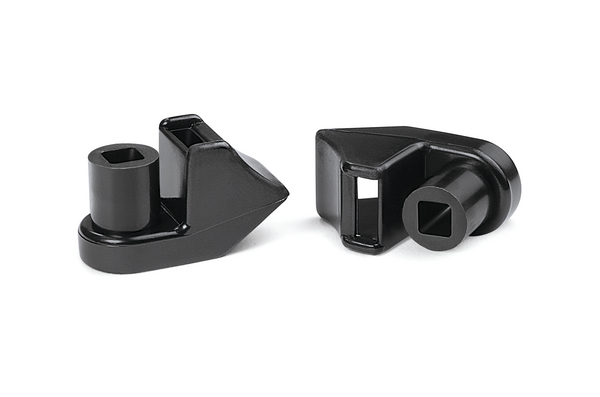

Cable tie mount for stud, black, 500pcs.
Art.-No. 151-02260 | SBH1-PA66-BK Details

  • Simple and quick method of fixing
  • SBH types simply hammered onto the stud
  • SBH1 and SBH3 allow cables to run across the panel
  • SBH2 allow cables to run at 90° to the panel

Request your individual offer now

Application Many industries (but specifically the automotive market) are using weld studs as the standard method of attaching components. Simply hammered onto the stud these parts provide ideal fixing bases for attaching cables, pipes or hose. The use of weld studs avoids the problems with holes (ingress of moisture, corrosion etc).
Application Tool MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method Weld Stud Fixing
Material Polyamide 6.6 (PA66)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION SBH1-PA66-BK
Product Family SB-Series
Product Group Fixing Elements for Weld Studs
Short Description Fixing Elements for Weld Studs 26.8x26.8 black

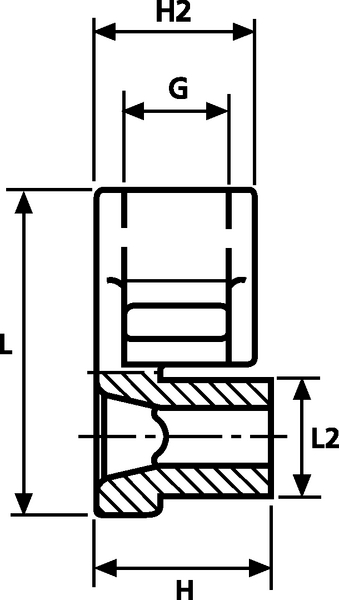

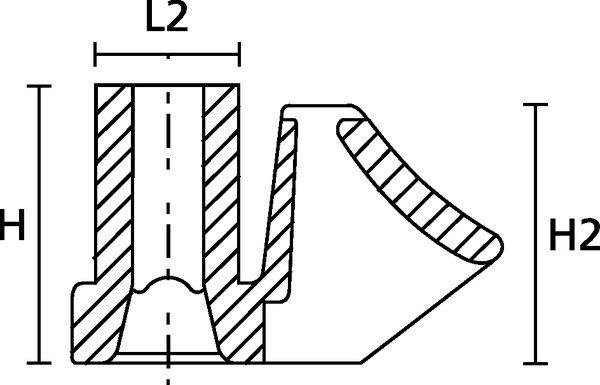

Height (H) 13.9mm
Height (H2) 15.9mm

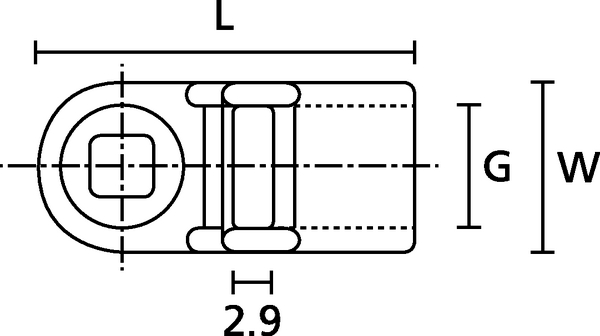

Length (L) 26.8mm
Length (L2) 9.0mm
Strap Width max. (G) 8.5mm
Stud ∅ 5.0 mm
Weight/Unit 0.002019kg

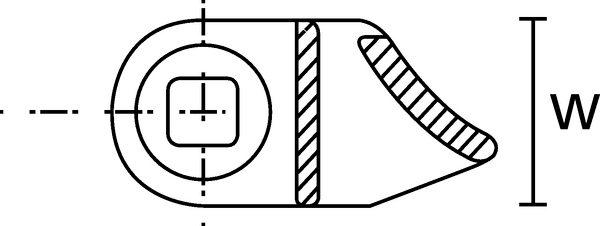

Width (W) 12.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026122458
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 1.023362kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 10.83362kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 281.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
