Fixing Elements for Weld Studs : SBH2
Fixing Elements for Weld Studs 5 mm blackArticle number: 151-26250
Features
- Simple and quick method of fixing
- SBH types simply hammered onto the stud
- SBH1 and SBH3 allow cables to run across the panel
- SBH2 allow cables to run at 90° to the panel
Certifications & Approvals
Application
Many industries (but specifically the automotive market) are using weld studs as the standard method of attaching components. Simply hammered onto the stud these parts provide ideal fixing bases for attaching cables, pipes or hose.
The use of weld studs avoids the problems with holes (ingress of moisture, corrosion etc).
More products in this product group
Fixing Elements for Weld Studs >| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Pack Cont. | 500pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | SBH2-PA66-BK |
| Product Family | SB-Series |
| Product Group | Fixing Elements for Weld Studs |
| Short Description | Fixing Elements for Weld Studs 5 mm black |
| Type | SBH2.NB6P |
|
|

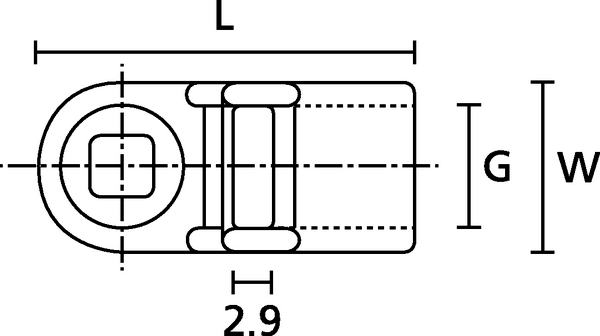

| Height (H) | 14.0mm |
| Height (H2) | 12.5mm |
| Length (L) | 26.8mm |
| Length (L2) | 9.0mm |
| Strap Width max. (G) | 8.5mm |
| Stud ∅ | 5.0 mm |
| Width (W) | 12.5mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026122465 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 1.453478kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 401.6kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.4kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
