Rivet mount : TY5K2
Rivet Mount 14x12 mm, heat stabilised, natural, Article number: 152-11209
Features
- Quick installation
- Two-piece wedge
- Easy insertion
- Firmly fixes wide variety of cable ties
Certifications & Approvals
Application

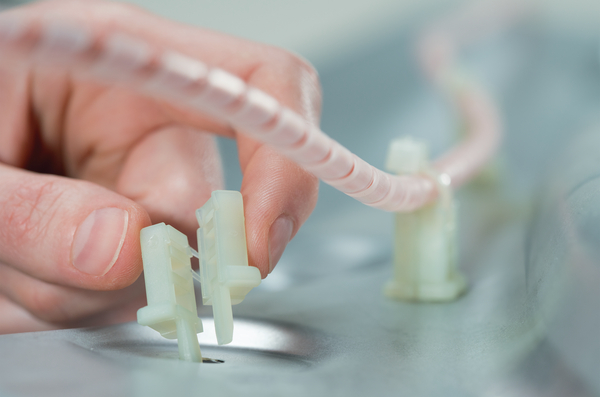

The TY Fixings are ideal for use where a high pull out force is required (eg. in the aircraft industry). The two piece 'wedge' ensures that once installed the mounts will not come away from the panel. Particularly designed for areas with restricted access.
More products in this product group
Rivet mount >| Colour | Natural (NA) |
| Description | Rivet Mount TY5K2 |
| Fixation Method | Rivet Mount |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | TY5K2-PA66HS-NA |
| Product Family | TY5-Series |
| Product Group | Rivet mount |
| Short Description | Rivet Mount 14x12 mm, heat stabilised, natural |
| Type | TY5K2.HN3P |
|
|
|

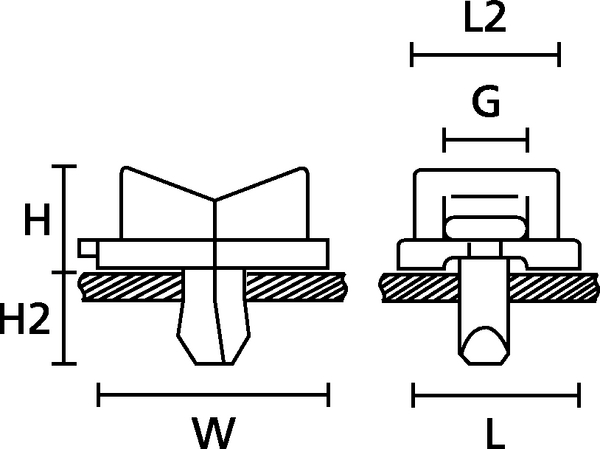

| for Hole ∅ (FH) | 4.9 - 5.3 mm |
| for Panel Thickness min - max | 1 - 5 mm |
| Height (H) | 7.8mm |
| Height (H2) | 9.5mm |
| Length (L) | 14.0mm |
| Length (L2) | 10.0mm |
| Strap Width max. (G) | 5.5mm |
| Width (W) | 12.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Nato number | 5975-12-197-1534 |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026123233 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.125m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00075m³ |
| Packaging 1 - Weight (kg) | 0.13877kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 8.9762kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 200.8kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.114kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
